IC693PWR331D power module
Brand:GE
Model:IC693PWR331D
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
IC693PWR331D power module
Product manual:
Basic information
Model: IC693PWR331D
Module type: DC power module
Applicable system: GE Fanuc Series 90-30 PLC
input parameter
Input voltage range: 2 to 30 VDC (starting requires ≥ 8 VDC)
Rated input voltage: 24 VDC
Maximum input power: 50 W
Output parameters
Total output power: Maximum 30 W (total of all outputs)
+5V output: Provided to CPU and I/O modules, maximum 30W
+24V isolated output: used to supply power to 24V input modules or other control circuits, maximum 20 W
+24V relay output: exclusively for relay output modules, maximum 5 W
+5V output voltage range: 5.0 to 5.2 V
+24V output voltage range: 19.2 to 28.8 V
Protection features
+5V output overvoltage protection: triggered within the range of 6.4 to 7.0 V
+5V output overcurrent protection: maximum output current of 7A
+24V output overcurrent protection: power-off protection in case of output overload
Power outage duration: greater than 10 milliseconds (under full load conditions)
LED
PWR: Power Status
OK: The module is running normally
RUN: PLC is in operation
BATT: Battery Status Indicator
Installation and Structure
Installation position: 90-30 series rack power slot
Wiring method: Terminal block connection
Cooling method: natural ventilation
Built in battery: used to maintain CPU module RAM data
Weight: Approximately 0.58 kilograms
Size: Approximately 25 cm x 9.5 cm x 20.5 cm

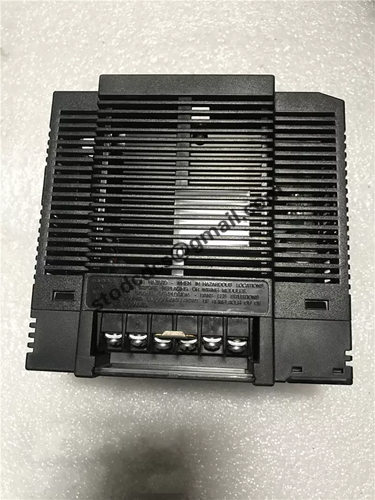

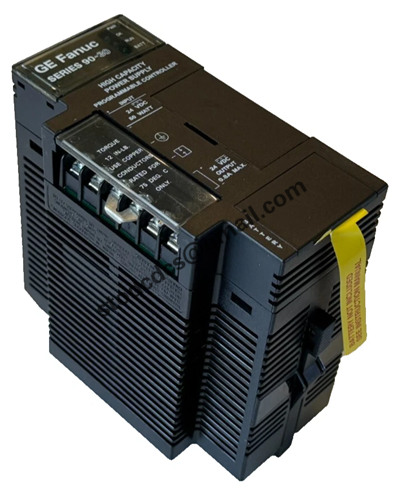

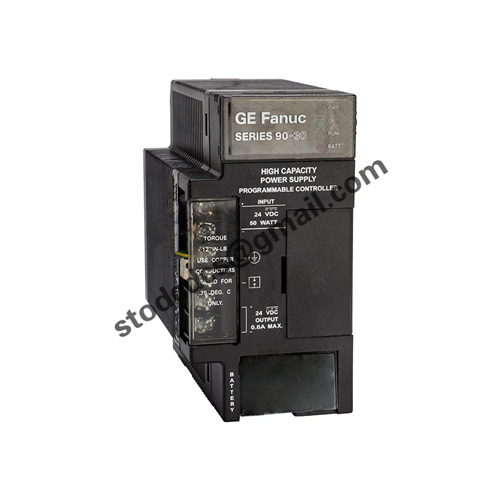

Product details picture:
