IC693PWR331D power module

Product manual:

1、 Product Overview
Product model: IC693PWR331D

Product Name: Power Supply Module

Manufacturer: GE Fanuc (General Electric, GE Automation Control Product Series)

2、 Main functions
Function Description
The main power supply converts AC power into stable DC voltage and supplies the entire 90-30 system
Power distribution is used to supply power to backplane modules such as CPU and I/O modules
Status indicator provides LED status indicators such as power supply normal, fault, etc

3、 Technical specifications
Parameter Category Technical Description
Input voltage 100-240 VAC, 50/60 Hz, single-phase
Maximum input current 1.0 A (depending on load)
Output voltage+5 VDC @ 10 A,+24 VDC @ 0.2 A (isolated auxiliary power supply)
Power capacity 50 watts (rated output power)
Surge protection with built-in overvoltage protection, overcurrent protection, and short-circuit protection mechanisms
Cooling method: natural air cooling (fanless)
LED indicator with status lights such as "Power OK" and "Fault"
Module type plug-in module, installed on 5-slot/10 slot/expansion backplane
Installation position: Installed at the leftmost position of the rack (main power slot)
Compatibility with GE 90-30 series CPU modules and all standard I/O modules

4、 Typical application scenarios
Process control system: used for power supply of automation control cabinets in chemical, food, energy and other fields

Equipment automation system: provides stable power supply to GE 90-30 PLC controller and its modules

OEM complete equipment: used for centralized power supply of medium and large automation equipment

Redundant power supply system: can be combined with UPS system to improve power supply reliability in certain situations

5、 Usage and maintenance suggestions
The power module must be installed in the leftmost slot of the main frame to ensure the correct power supply sequence

Before operation, it is necessary to check whether the input power supply is within the rated range to avoid damaging the module

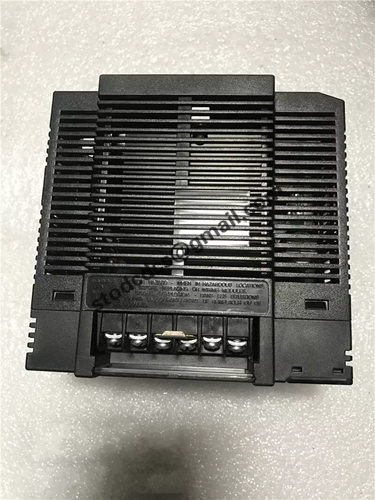

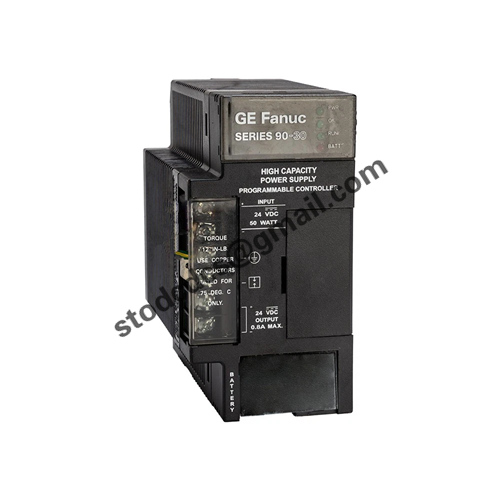

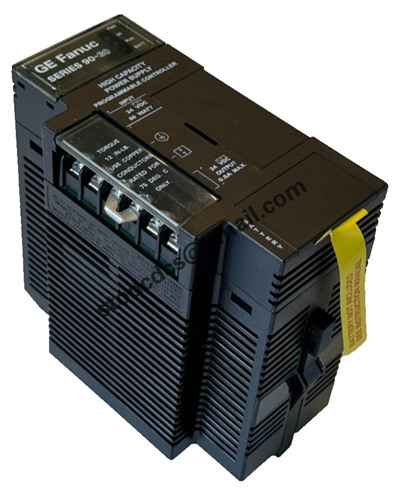

Product details picture:
