ILS1B853S1456 driven stepper motor

Product manual:

ILS1B853S1456 Integrated Drive Stepper Motor
Product positioning

Schneider Electric Lexium ILS series integrated stepper motor unit

The motor and driver are integrated in the same module

Suitable for industrial automation CNC、 High precision motion control applications such as robots and packaging machinery

Core Features

Built in driver, can be used without an external stepper driver

Support Pulse/Direction control signals

Can achieve step angle control and micro step control, improve positioning accuracy and smoothness

Simple wiring, high overall system integration, and easy debugging

working principle

The controller sends pulses and direction signals to the motor

The internal driver of the motor generates current based on the control signal, driving the motor to rotate

Can achieve precise position and speed control

Micro step mode can improve motion smoothness and positioning accuracy

Precautions for use

Power requirement: DC power supply, typical 24-36 VDC

Control signal source: PLC or motion control card, no additional driver required

Easy installation, integrated driver reduces wiring and fault risks

Micro step mode can be selected according to system requirements

Summary of Advantages

Integrated design reduces wiring and debugging work

High reliability and stability, suitable for industrial environments

Suitable for applications that require precise positioning and continuous motion control

Compatible with standard industrial control signal interfaces, easy to integrate into systems

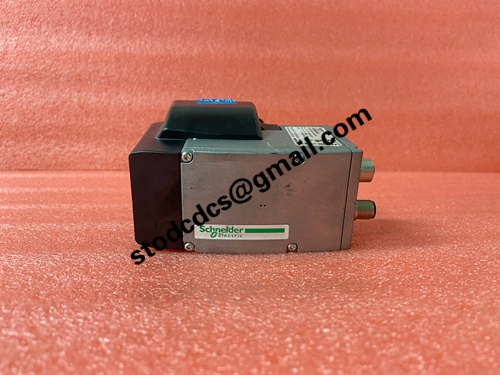

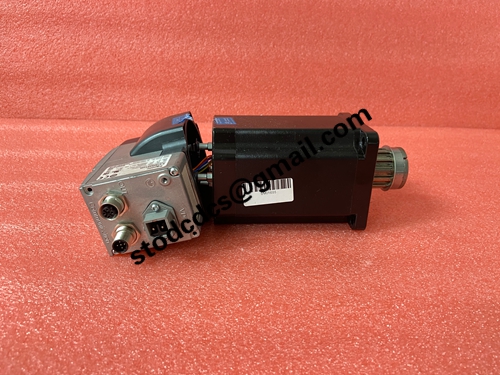

ILS1B853S1456 Product details picture:

ILS1B853S1456 product video
