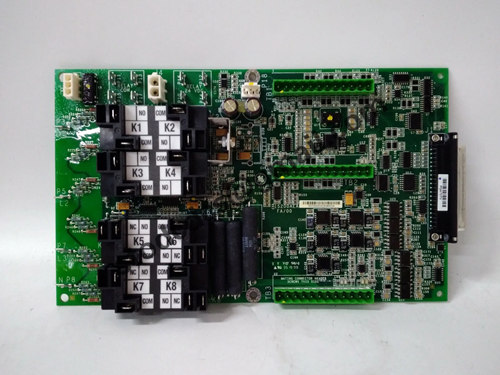

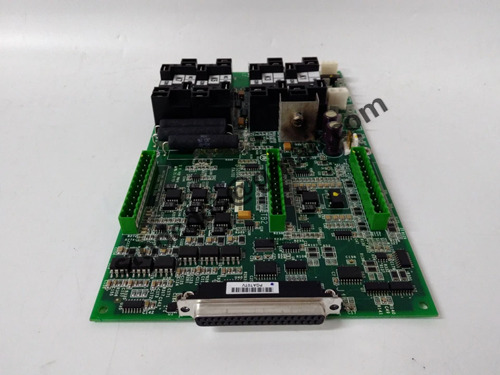

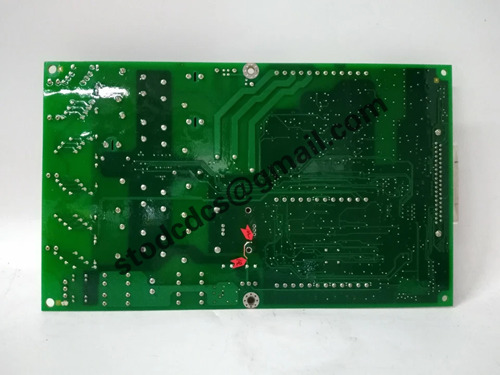

IS200AEADH4A input terminal board

Brand:GE
Model:IS200AEADH4A
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

IS200AEADH4A input terminal board

Product manual:

GE IS200AEADH4A Input Terminal Board
It is an input terminal board that is a key I/O module in the General Electric (GE) Mark VI or Mark VIe control system,
Widely used in gas turbines, steam turbines, and other industrial automation control systems for analog signal access and conditioning.

1、 Basic Information
Project Content
Product model IS200AEADH4A
Name: AEAD Input Terminal Board (Analog/Encoder/Attenuator/Distribution)
Manufacturer GE (General Electric)
System Platform Mark VI/Mark VIe Control System
Function type: Terminal Board for Analog Input

2、 Core functions
Analog input signal access

Provide channel wiring terminals for receiving analog input signals (such as voltage, current, etc.) from external sensors, transmitters, and other devices.

Signal conditioning and distribution

It includes functions such as isolation, filtering, voltage division, and short-circuit protection to ensure stable and reliable transmission of signals to the control module.

Used in conjunction with I/O modules

Usually used in conjunction with IS200AEAAH1A or similar analog acquisition modules, signal transmission is achieved through connecting cables (such as JT1, JT2 connectors).

High reliability design

Industrial grade design, suitable for harsh environments; Capable of anti-interference and overvoltage protection.

3、 Technical parameters (typical values)
Parameter Description
Analog input signal types: 0-5V, ± 5V, 0-20mA, 4-20mA (depending on system configuration)
The number of channels generally supports 10-16 analog inputs
Terminal type: Plug in terminal block with serial number
Isolation between electrical isolation input/control signals
The connection method is to connect the motherboard through a cable (usually a signal harness or ribbon cable)
Installation method: DIN rail or panel fixed screw installation
Applicable ambient temperature -30 ° C to+65 ° C (according to GE industrial standards)
