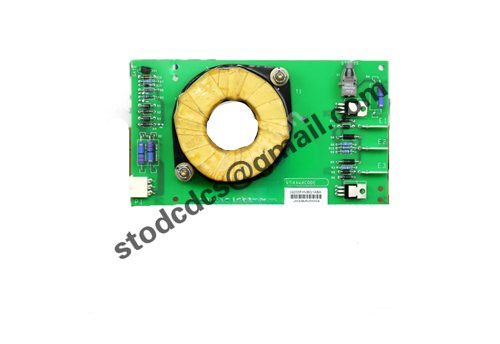

IS200FHVBG1A High Voltage Input Board

Brand:GE
Model:IS200FHVBG1A
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

IS200FHVBG1A High Voltage Input Board

Product manual:

product overview
IS200FHVBG1A is a high-voltage input board designed by GE General Electric for the LS2100 series static starting system
The main function is to receive control signals and convert them into gate signals to drive thyristors
Simultaneously possessing the ability to detect, protect, and provide feedback on input high voltage is a critical high voltage interface control component in the system

Core functions
The high-voltage input voltage guarantee system in the high-voltage input monitoring system operates within the safe voltage range
Gate pole signal drive
Receive trigger signals from the main control system to generate reliable gate pulse driving SCR thyristor conduction
Feedback the voltage, current, and gate status to the higher-level control board for system protection and closed-loop control
Fault indication detection gate pole fault and transmission to FGPA or other main control logic modules through signal interface

Technical Parameter
The adaptation system is the LS2100 series
Typical application voltage level is medium voltage three-phase AC system
The working temperature range is minus 40 to 70 degrees Celsius
The board size is sixteen by twelve by sixteen centimeters
The weight is about 0.8 kilograms
Support multi-channel gate triggering and signal feedback
Capable of basic protective functions and suitable for industrial environments

Application scenarios
Mainly used for SCR thyristor trigger control in GE static excitation system
Start up and excitation control system for gas and steam turbines
Large industrial motor starting and power conversion system
High voltage interface and protection board in power electronic converter system
