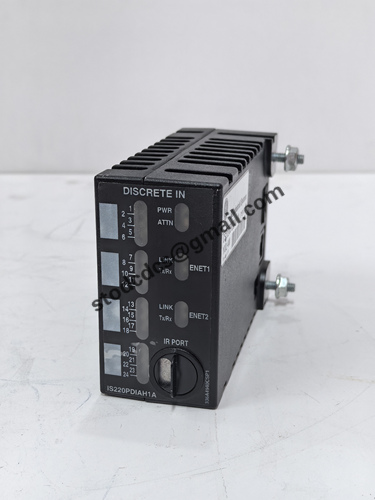

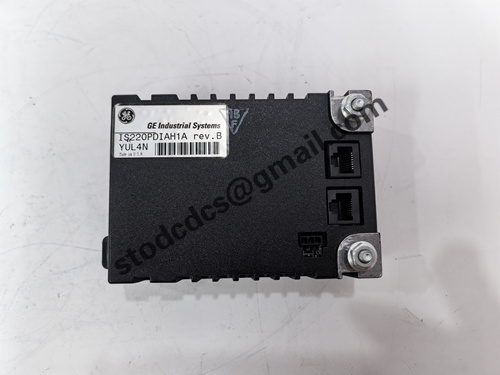

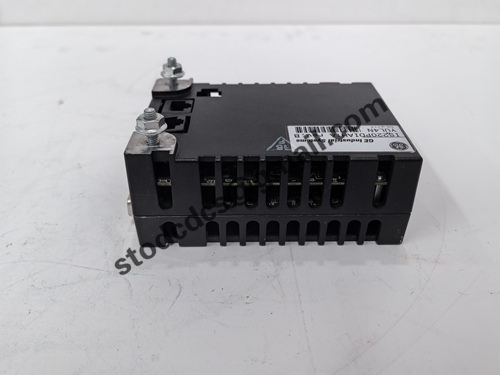

IS220PDIAH1A independent module

Brand:GE
Model:IS220PDIAH1A
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

IS220PDIAH1A independent module

Product manual:

IS220PDIAH1A is a DIN rail mounted digital input module in the Mark VIe control system,
Used to collect dry contact or active/passive switch signals from industrial sites.
This module supports multi-channel digital input, with each channel independently isolated,
And communicate with the main control system (such as controllers or I/O packs) through IONet.

Main technical parameters
Project Description
Module Type: Digital Input Module (PDI: Packaged Digital Input)
Number of input channels: 16 isolated digital input channels
The input voltage range is usually 24V DC (logic "1" is valid)
Channel insulation isolates each channel (between ground and other channels)
Channel status LED indicates that each channel has a corresponding indicator light displaying the on/off status
Communication interface IONet (supporting Ethernet and communication redundancy)
Installation method: DIN rail installation
The power supply is connected to the I/O Pack to provide low-voltage power (approximately 28V DC)
Compact module size structure, suitable for standard control cabinet space
Working temperature range -30 ° C to+65 ° C
Electrical safety and certification meet industrial safety standards such as CE, UL, CSA, ATEX (depending on version)

Product Features
16 isolated digital inputs: suitable for detecting status signals of dry contacts, relays, switches, etc

Module hot swappable: supports online replacement without power outage, reducing maintenance time

LED status indicator: convenient for on-site diagnosis and channel status viewing

Seamless integration with Mark VIe controller: compatible with all GE control network configurations

Built in signal protection: equipped with overvoltage, reverse connection, surge and other protection measures

Support redundant system architecture: can be applied in dual channel redundant architecture

Typical application areas
Gas turbine and steam turbine control systems

Power plant process signal acquisition

Oil and gas automation system

Remote status monitoring of industrial equipment

Discrete input interface in power and energy control cabinet
