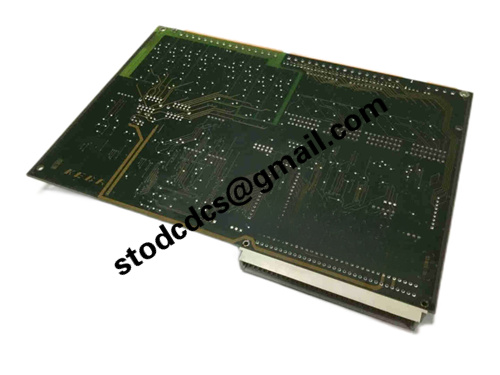

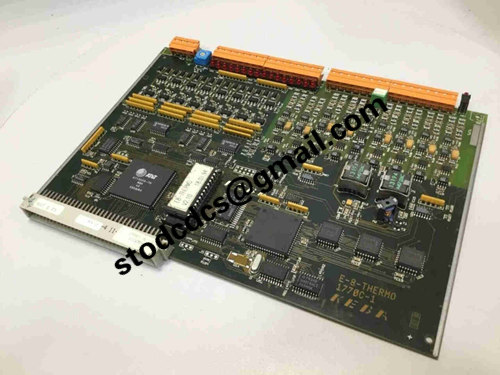

KEBA 1770C-1 Controller Circuit Board

Brand:KEBA
Model:1770C-1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

KEBA 1770C-1 Controller Circuit Board

Product manual:

product overview
KEBA 1770C-1 is a high-performance Controller Board,
Used for core logic and equipment control in KEBA automation systems.
This module typically serves as the brain of an embedded control system, integrating processors, storage, and input-output control logic,
And the communication function with external devices, adapted to platforms such as KEBA KePlast, KeMotion, or KeControl,
Real time control for injection molding, packaging, robots, and general automation equipment.

Technical Parameter
Product model: KEBA 1770C-1

Function type: Embedded controller motherboard/control core module

Processing core: Industrial grade CPU (commonly PowerPC, ARM, or Intel Atom architecture)

Memory: Integrated SDRAM/DDR (capacity 512MB~2GB, depending on configuration)

Program memory: Flash memory (typically 128MB~1GB)

Input/output interface:

Digital input/output (expandable)

Analog input/output (depending on specific project)

CAN bus/RS232/RS485/EtherCAT (communication interface)

Display interface: LVDS or TFT interface (used to connect KEBA display screen)

Installation method: board embedded installation, slot connection or backplane power supply

Power supply requirements: typically 24V DC

Working temperature range: -10 ° C to+60 ° C (industrial standard)

Application scenarios
injection molding machine control system

As the core board of KePlast series control platform, responsible for coordinating processes such as temperature control, mold closing, injection, etc

Support multi axis synchronization and motion path scheduling

Automated packaging system

Implement logical control of conveyor belts, labels, packaging, testing and other equipment

Synchronize work with sensors, actuators, and HMI

industrial robot control

Control joint motion, execute path planning, and respond in real-time to feedback signals

Collaborative operation with visual system

Customized machine tool/control cabinet system

Universal Embedded Logic Control Core for OEM Equipment Manufacturers

Can integrate HMI, human-computer interaction, and remote maintenance functions
