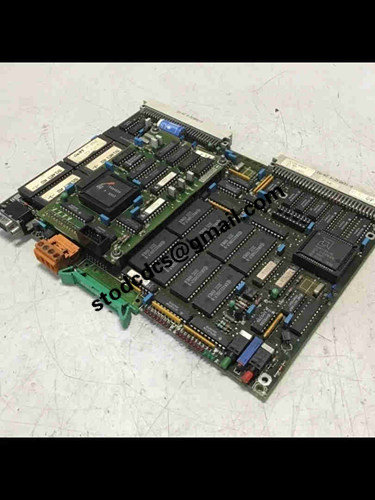

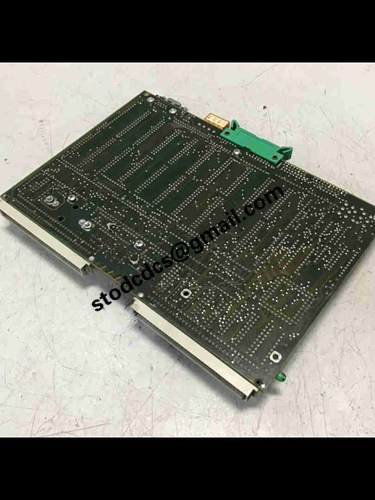

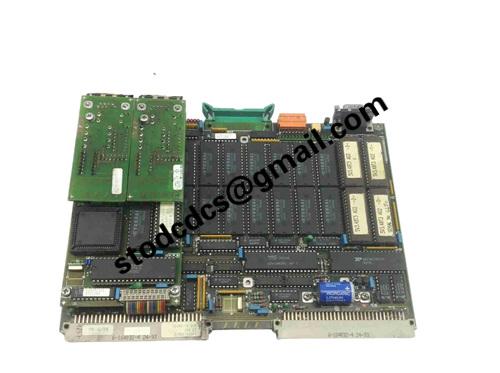

KEBA D1633C Control Circuit Board

Brand:KEBA
Model:D1633C
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

KEBA D1633C Control Circuit Board

Product manual:

Circuit board type: Multi functional industrial control board (customizable with I/O and communication functions)

Signal processing capability: supports digital input/output, analog processing, and communication interface expansion

Main control chip: Industrial grade embedded MCU or FPGA (depending on configuration)

Communication support:

Optional RS232, RS485, CAN, Ethernet, SPI and other interfaces

Connected to the main control system through backplane bus or flat cable

Input/output channels (according to configuration):

Digital input (24V DC) × 8-16

Digital output (relay or transistor) x 8-16

Analog input (0-10V or 4-20mA) x 2-8

Analog output (0-10V) × 2-4

Power supply voltage: 24V DC (± 10%)

Working temperature: 0 ° C to+55 ° C

Circuit board structure: Industrial grade PCB with 4 or more layers, equipped with anti-interference protection

Installation method: plug-in, screw hole fixed or dedicated chassis card slot installation

Status indication: Onboard LED indicates operating status and channel status

Application areas:
1. Injection control system (such as KePlast platform)
The control board is used to process signals such as injection, holding pressure, and mold temperature adjustment.

2. Packaging machinery control unit
Realize high-speed sensor input and actuator output control, coordinate multi axis synchronization.

3. Embedded control system for industrial robots
Used for processing encoder feedback, servo drive control, and communication data distribution.

4. Motion control platform
Manage servo drives, signal interfaces, and process logic to achieve precise control.

5. Equipment Control and Data Acquisition System (SCADA Access)
Execute data collection tasks and upload them to the main control system through communication interfaces.
