KEBA E-8-ANALOG/C control board

Product manual:

Product Overview:
KEBA E-8-ANALOG/C is an analog input/output control board in the KEBA automation system,
Usually used to collect external analog signals (such as voltage, current, temperature) and transmit them to the main control system for processing,

Technical parameters:
Module type: Analog input/output control board

Number of channels: 8 channels (configurable as input or output, specific versions may vary slightly)

Input signal type:

Voltage input: 0-10V, ± 10V

Current input: 0-20 mA, 4-20 mA (optional)

Output signal type:

Voltage output: 0-10V

Current output: 4-20 mA (only for supported versions)

A/D conversion accuracy: 12-16 bits (depending on the model)

Response time: typically less than 10 ms

Insulation method: The channel isolates the system and has strong anti-interference ability

Power supply voltage: 24V DC (± 10%)

Status display: onboard LED status indicator light

Installation method: plug-in or backplane connection

Working environment: temperature 0-50 ° C, humidity<85% (no condensation)

Application areas:
1. Temperature and pressure control of injection molding/rubber machinery
Collect thermocouple amplifier output and voltage type pressure sensor signal

Analog drive signal output for controlling proportional valves, heaters, and other equipment

2. Process control system
Used for collecting continuous variables such as flow rate, liquid level, speed, tension, etc

Accurate output control signals are used to regulate valves, frequency converters, proportional actuators, etc

3. Packaging and printing equipment
Control heat sealing temperature, tension feedback, servo voltage regulation, etc

Implement synchronous control and analog feedback loop closed-loop control

4. Industrial Robot Platform
Receive analog input signals from external sensors or force control devices

Output analog control signals to end effectors, electric grippers, etc

5. Integration of equipment status acquisition and control system
Collect device status or environmental variables (temperature, current, voltage) for system warning or analysis

Output signals are used for external device driving or linkage logic control

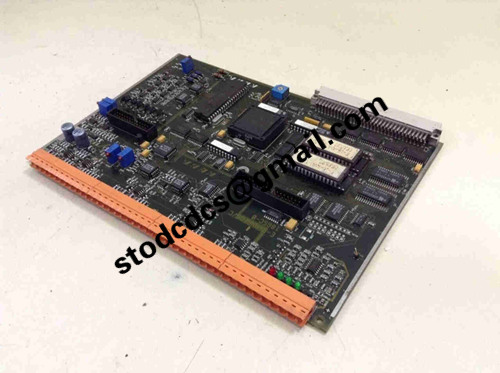

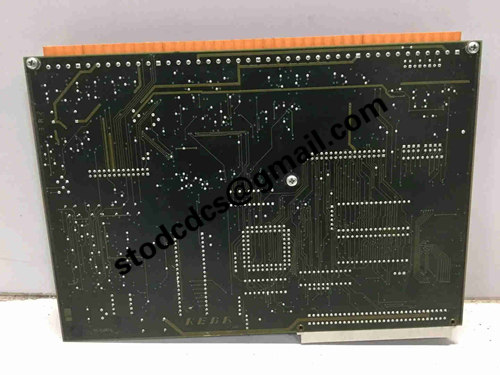

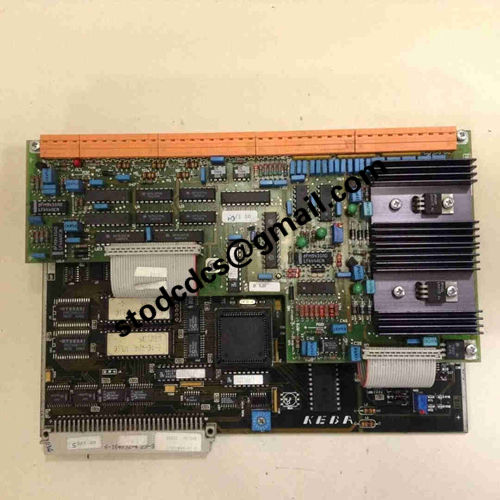

Product details picture:

E-8-ANALOG/C
