KEBA E-SP-CCEC/A/22 Operator Control Panel

Product manual:

1、 Product Overview
KEBA E-SP-CCEC/A/22 is an Operator Control Panel designed specifically for industrial automation systems,
Used for human-computer interaction, system monitoring, and process control.
This panel integrates buttons, switches, signal indicators, and interface units, making it easy for operators to directly control or set parameters of the equipment on site,
Widely used in injection molding machines, packaging lines, robots, and automation equipment in KEBA control platforms such as KeControl and KePlast series.

2、 Technical parameters
Model: E-SP-CCEC/A/22

Function type: Operator local control panel

Panel structure:

Including emergency stop button, function keys, selection switch, LED status indicator, etc

Possible integration of commonly used operating components such as knobs, mode switching keys, and key controlled start stop

Connection method: Connect to the main control system through standard industrial interfaces (such as SUB-D, IDC, pins or dedicated connectors)

Power supply voltage: generally 24V DC

Protection level: The front of the panel has an IP54 or higher rating, which is dustproof, waterproof, and splash proof

Installation method: The front panel is embedded and installed in the cabinet, console, or device front frame

Size and layout: 22 indicates a possible 22mm standard for perforated button panels (IEC 60947-5-1)

3、 Application Fields
Injection molding equipment control interface

Provide operators with quick access to the status of injection, mold, heating, and other systems.

Local control station for industrial robots

Used for tasks such as manual debugging, mode switching, and status confirmation of robots.

Packaging and Conveyor Line Control Terminal

The on-site station has functions such as start stop, alarm reset, and operation mode conversion.

Customized interface module for equipment panel

Embedded into the device casing of OEM customers, serving as the human-machine interface component for the main control system.

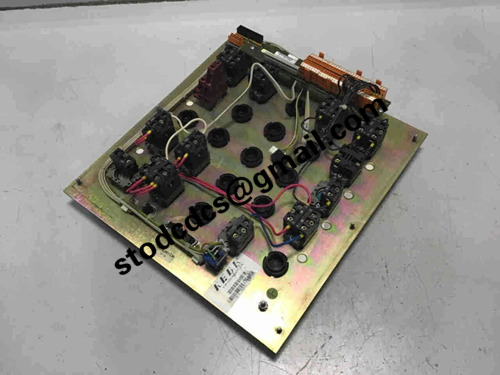

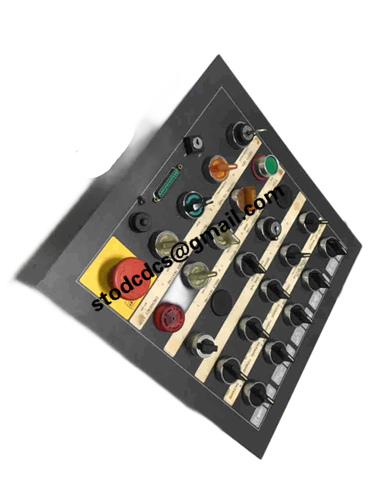

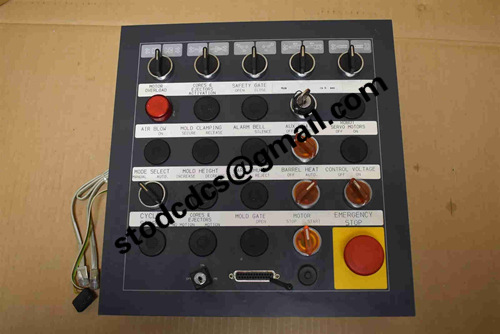

Product details picture:

E-SP-CCEC/A/22
