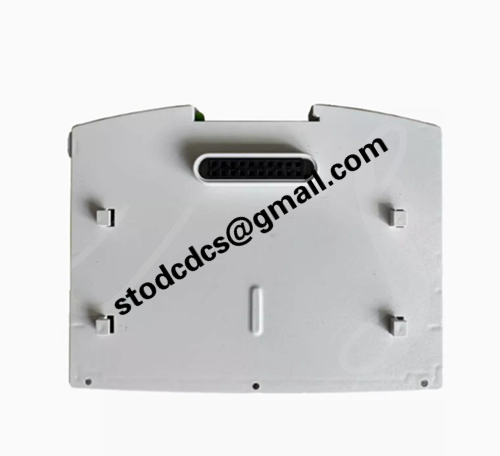

KEBA TI-570 thermocouple input module

Brand:KEBA
Model:TI-570
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

KEBA TI-570 thermocouple input module

Product manual:

Product Overview:
The KEBA TI-570 thermocouple input module is an analog acquisition module in the KeControl series control system,
Specially designed for receiving and processing temperature signals from thermocouple sensors.
This module uses a high-speed, high-precision analog-to-digital converter (ADC) to convert data,
Converting millivolt level signals from thermocouples into numerical data that can be processed by control systems is widely used in various industrial temperature control applications.

Technical parameters:
Module Type: Thermocouple Analog Input Module

Number of input channels: 8 independent thermocouple inputs

Support thermocouple types: J, K, T, E, N, R, S, B and other standard thermocouples

Resolution: 16 bit A/D conversion accuracy

Sampling rate: 50ms to 250ms per channel (depending on configuration)

Measurement range: Depending on the type of thermocouple, it can cover temperatures from -200 ° C to+1800 ° C

Cold end compensation: Built in cold end automatic compensation function (CJC)

Channel isolation: Each channel is electrically isolated, with strong anti-interference performance

Connection method: Connect to the main controller through the system backplane or expansion bus

Working voltage: 24V DC power supply

Installation method: Standard DIN rail installation

Working environment temperature: 0 ° C to+55 ° C

Product application areas:
1. Injection molding machine temperature control system
Collect temperature signals from key areas such as the heating zone, nozzle, and cylinder of the mold.

Cooperate with KePlast controller to achieve closed-loop temperature control.

2. Process control of heating/cooling system
Used for temperature monitoring of electric heating furnaces, steam pipelines, electric ovens, and heat treatment equipment.

Realize multi-point synchronous acquisition and regional temperature difference control.

3. Monitoring of food and pharmaceutical equipment
Accurately measure the temperature of sterilization, drying, and constant temperature storage equipment.

Real time temperature data collection to meet regulatory requirements such as GMP and HACCP.
