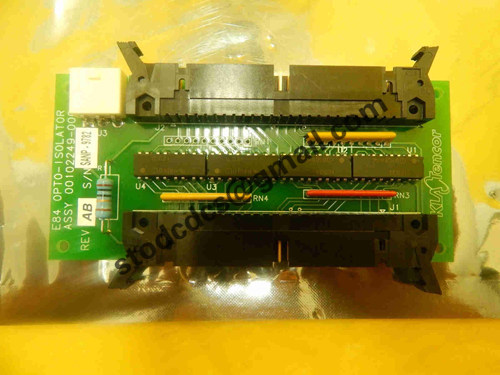

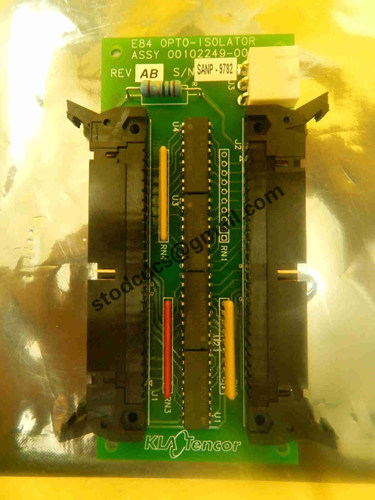

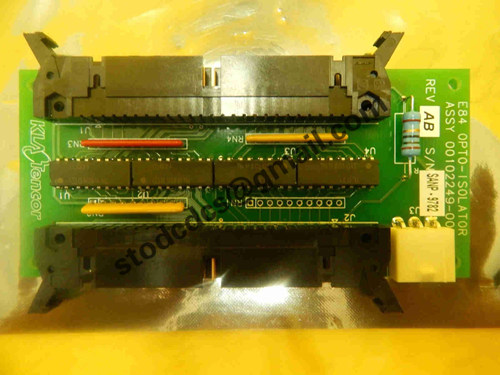

KLA Tencor 00102249-000 Isolator Module

Brand:KLA-Tencor
Model:00102249-000
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

KLA Tencor 00102249-000 Isolator Module

Product manual:

KLA Tencor 00102249-000 Isolator Module Detailed Description
1. Product Overview
KLA Tencor 00102249-000 is an optical isolator module mainly used in semiconductor testing equipment, providing electrical isolation and signal protection functions.
This module is capable of converting electrical signals into optical signals for transmission, and then converting them back into electrical signals,
Thus effectively isolating electrical interference between different circuits, ensuring the stability and safety of the system.

2. Main functions
Signal isolation: prevents electrical interference and ground potential differences from affecting equipment signal transmission, ensuring signal integrity.

Signal conversion: Convert electrical signals into optical signals for transmission, suitable for long-distance and high-speed signal transmission.

System protection: Protect sensitive components inside the equipment from overvoltage and electrical noise damage, and improve equipment reliability.

3. Technical parameters
Model: 00102249-000 (Version Rev. AB)

Type: Opto Isolator Module

Application equipment: CRS-3000 confocal review station and related detection equipment widely used in KLA Tencor

Performance characteristics: high anti-interference ability, stable signal transmission, suitable for industrial environments

4. Precautions for use
Installation and maintenance should be carried out by professionals to avoid electrostatic damage.

Ensure that the connection port is correct and secure to prevent poor signal contact.

Avoid using in high humidity or strong electromagnetic interference environments to extend the lifespan of the module.

Regularly check the operation status of the module to ensure good signal isolation effect.

5. Scope of application
Signal isolation and protection module in semiconductor testing equipment

Industrial automation equipment that requires high-quality signal isolation and long-distance signal transmission
