KLA Tencor 073-650069-00 Controller Board

Product manual:

KLA Tencor 073-650069-00 Controller Board
It is one of the key electronic modules in the KLA Instruments 2132 wafer surface defect detection system.
This control board, also known as the "DF Board", has the following main functions and application areas:

major function
Defect detection control
This controller board is responsible for processing and controlling key signals and data streams during the wafer surface defect detection process,
Ensure the efficiency and accuracy of the detection process.

System integration: As one of the core components of the system, it is integrated with other modules
(such as image sensor board, memory controller board, etc.) work together to achieve coordinated operation of the entire detection system.

application area
Semiconductor manufacturing: widely used in the wafer manufacturing process to detect defects on the wafer surface and ensure product quality.

Process development and quality control: In the process development and quality control laboratory,
High precision defect analysis for the development of new processes and product quality.

Technical specifications and versions
Model: 073-650069-00

Related part number: 710-658363-20

Applicable equipment: KLA Instruments 2132 wafer surface defect detection system

Version information: This controller board has multiple versions, such as Rev. B0, C0, D0, etc,
The specific version selection depends on the configuration and requirements of the device

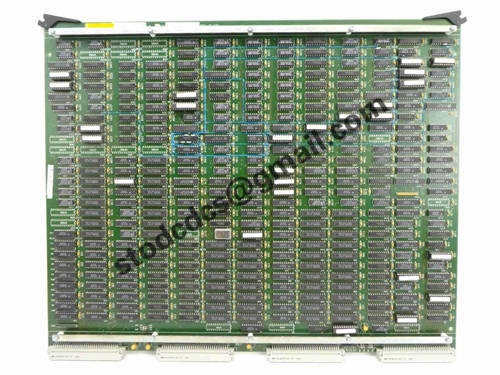

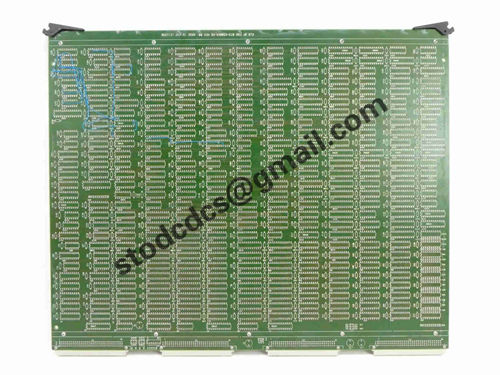

Product details picture:
