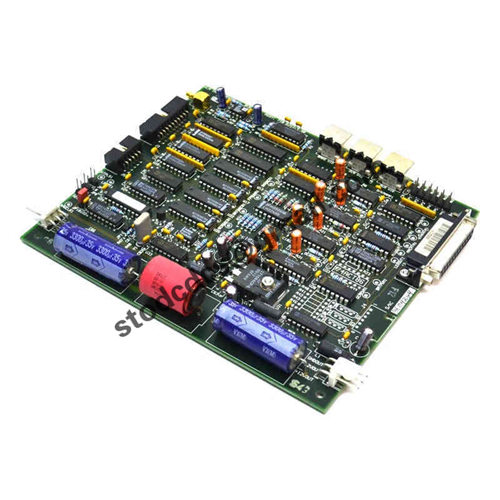

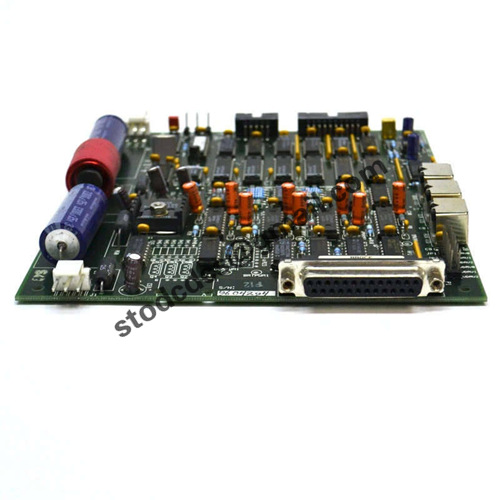

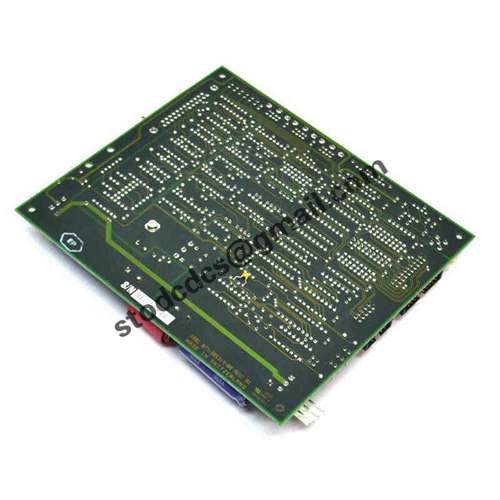

KLA Tencor 073-805314-00 driver board

Brand:KLA-Tencor
Model:073-805314-00
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

KLA Tencor 073-805314-00 driver board

Product manual:

KLA Tencor 073-805314-00 Driver Board - Product Application Field Detailed Explanation
1、 Basic Product Information
KLA Tencor 073-805314-00 driver board, also known as BCB IIb Board Assembly,

2、 Product application areas
1. Wafer Testing and Probe Systems
The driver board is used to control the precise movement of the probe system,
Realize precise docking between probes and wafer electrodes, supporting high-precision electrical testing.

Commonly used in probe stations such as P-8 and P-20 series,
Used for automated positioning and alignment before wafer testing.

2. Precision motors and multi axis system control
This driver board supports multi axis linkage and can synchronously control multiple servo motors,
Ensure that all components of the equipment work together during wafer inspection.

Provide stable speed, acceleration control, and position calibration,
Especially suitable for systems that require high-precision repetitive positioning.

3. Motion control of image acquisition platform
The driver board can also be used for controlling the scanning platform of the image recognition module,
Support high-speed movement and low shake control to ensure clear and complete image acquisition data.

4. Automated Vehicle Loading System (Wafer Handling)
In the wafer loading and unloading process of the equipment, this driver board can be used to control vacuum suction cups, robotic arms
The motion process of rotating platforms and other components enables fast and stable wafer transfer operations.

3、 Summary of functional features
High precision motion control capability meets the high requirements of semiconductor testing.

Support direct communication with the control system (main control CPU board) to complete position feedback and real-time adjustment.

Easy modular maintenance and replacement, improving equipment maintainability and upgradability.

Multi functional interface design, strong compatibility, suitable for multiple KLA detection platforms.
