KLA Tencor 281-242600-2 Loader Interface Board

Product manual:

1、 Product identification
Model: 281-24260-2 (sometimes labeled as 208-600242-2)

Function: Loader interface board, used for wafer loading and handling control in semiconductor probe station systems

Adaptation system: Autoloader module typically used in KLA Tencor 1007 Probe devices

2、 Core functions and purposes
Handling control interface

This board is responsible for receiving handling instructions from the main CPU or on-site controller,
And control the grasping/releasing mechanism, platform movement, arm positioning and other actions.

Signal relay and synchronization

Act as a relay between the loader and the main control system,
Ensure reliable transmission of multiple signals such as commands, sensor feedback, and limit switch status.

Real time fault detection and feedback

Receive signals from photoelectric/mechanical sensors to detect whether the wafer is picked up correctly
Whether it is aligned and abnormal, and promptly feedback to the upper system.

Equipment Security and Interlocking

Equipped with interlocking and safety switch inputs to prevent wafer misplacement caused by transfer operations
Collision risk ensures safe loading process.

3、 Application Fields
Automated loading of semiconductor probe stations: used for wafer probe testing equipment such as KLA Tencor 1007 Prober

Packaging and testing process: automatic handling before wafer feeding into the probe station;
Automatically retrieve wafers after probe testing is completed

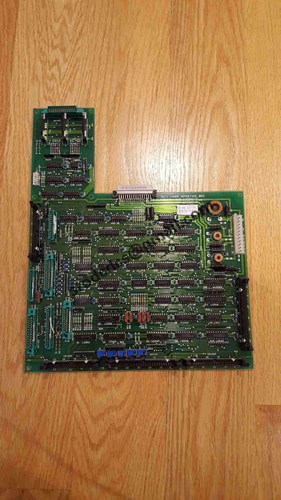

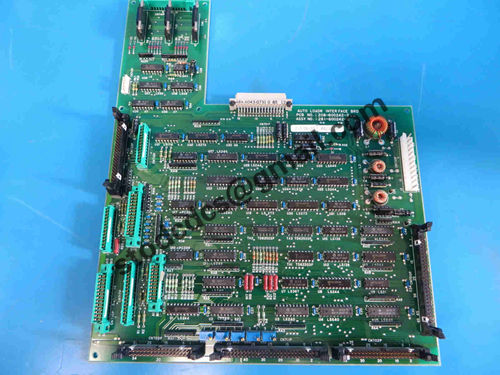

Product details picture:
