KLA Tencor 710-400535-00 restriction board

Product manual:

KLA Tencor 710-400535-00 Limit Array Board
It is a core security component in semiconductor testing equipment, specifically designed to monitor and manage the physical motion boundaries of mechanical systems.

Detailed Function Description
Limit signal acquisition and processing
The limit plate is connected to multiple limit switches or sensors,

Security alarm and action triggering
Once the component reaches the limit position, the limit plate will immediately send a signal to the main control system,
Trigger mechanical stop or reverse action to avoid equipment collision or excessive movement.

Signal filtering and anti jitter design
The board design incorporates signal filtering and anti jitter circuits,
Reduce misoperation caused by mechanical vibration or electrical interference, and improve the stability of equipment operation.

Multi channel support
Support multiple limit signal inputs to meet the multi-point limit requirements of complex mechanical structures,
Flexible configuration of limit control for different mechanical axes.

Status indication and diagnostic interface
Some versions are equipped with LED status indicator lights, which facilitate on-site technicians to quickly determine the limit status,
Cooperate with diagnostic interfaces to achieve remote monitoring and fault location.

application area
Semiconductor wafer testing equipment
Control the movement range of the mobile platform and robotic arm in the wafer inspection instrument,
Ensure that the wafer or probe does not cross the boundary during the detection process.

Automated assembly and testing line
Used for limit protection of robotic arms and conveyors in automated production equipment,
Improve the safety factor of the production process.

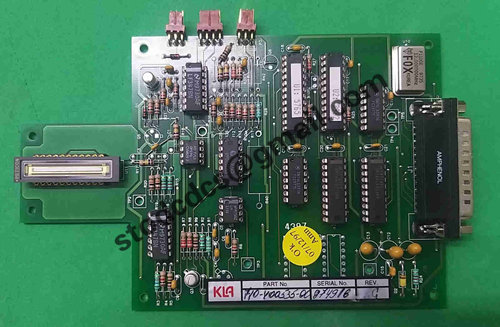

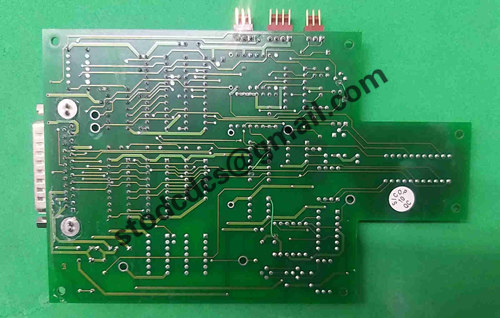

Product details picture:
