KLA Tencor 710-404146-00 Circuit Board

Product manual:

The KLA Tencor 710-404146-00 circuit board is a critical electronic module used in semiconductor testing equipment,
Mainly used in KLA Tencor's 5100 and 5200 series wafer overlay detection systems.

Main application areas
Wafer Stacking Inspection System
This circuit board is widely used in KLA Tencor's 5100 and 5200 series wafer stack inspection systems,
Responsible for receiving and processing signals from sensors to achieve high-precision detection of wafer pattern stacking accuracy.

Signal Processing and Data Management
In the device, this circuit board is used for high-speed data transmission and processing,
Support the collection and analysis of real-time image data to meet the requirements of high-precision detection.

System Integration and Expansion
As part of the modular system, the 710-404146-00 circuit board provides flexible interfaces,
Support system expansion and upgrade to meet different detection needs.

Equipment maintenance and replacement
This module serves as a standardized component, making it easy for equipment maintenance personnel to quickly replace and upgrade,
Reduce equipment downtime and improve production efficiency.

technical specifications
Model: 710-404146-00

Function: Signal processing, data analysis, and system communication

Compatibility: Compatible with KLA Tencor's 5100 and 5200 series detection systems

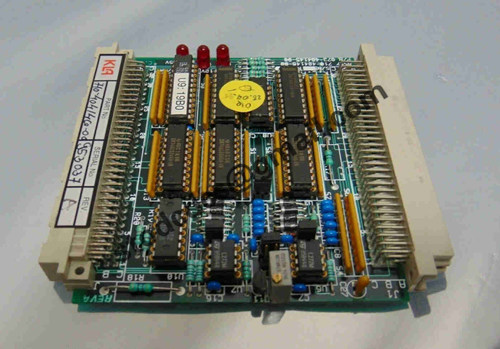

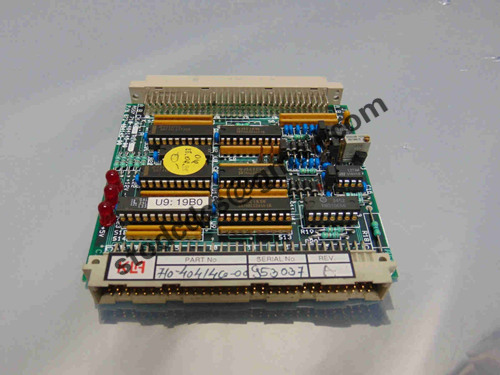

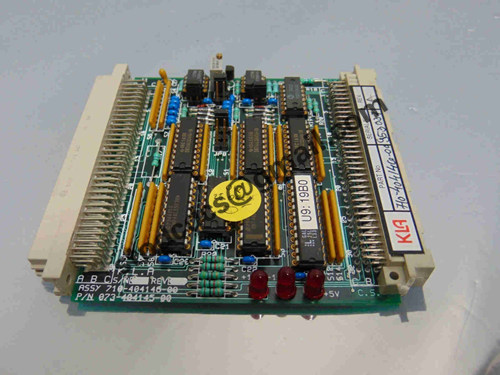

Product details picture:
