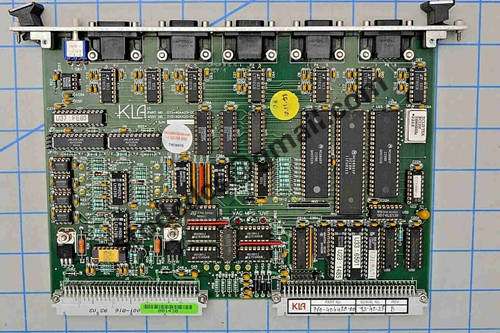

KLA Tencor 710-404420-00 Input/Output Module

Brand:KLA-Tencor
Model:710-404420-00
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

KLA Tencor 710-404420-00 Input/Output Module

Product manual:

product overview
KLA Tencor 710-404420-00 is a high-performance input/output module designed specifically for semiconductor testing and manufacturing equipment.
It serves as a signal bridge between the control system and the actuator, responsible for the acquisition of various digital and analog signals
Transmission and feedback ensure precise control and status monitoring of equipment in high-precision environments.

function characteristics
Multi channel input/output support

Simultaneously processing digital inputs, outputs, and analog signals from multiple channels.

Supports signal types such as TTL, current loop, optocoupler, etc.

High response speed

Real time processing of high-speed signals from sensors, actuators, and main controllers.

Suitable for manufacturing process control that requires extremely high reaction time.

Signal isolation and anti-interference design

Module integrated electrical isolation technology effectively prevents signal interference between systems.

Equipped with overvoltage protection and current limiting functions to enhance stability.

Strong modularity and scalability

Easy to replace or upgrade in the device system.

More control modules can be connected through expansion slots or backplane interfaces.

Technical parameters (reference)
Input types: dry contact input, TTL level, 24V digital input, etc

Output types: relay output, transistor output, 24V digital output, etc

Number of input/output channels: usually 8-32 channels (depending on configuration)

Response time:<1ms

Communication method: Backplane bus or local serial communication

Working temperature: 0 ° C~50 ° C

Power requirement: 5V or 24V DC (depending on version)

Typical application areas
Semiconductor wafer testing equipment
Control the signal interaction of subsystems such as probes, mobile platforms, and image acquisition systems.

Automated detection system
Manage the input and output logic of photoelectric sensors, alarms, execution motors, etc.

Optical equipment control system
Realize light source control, filter adjustment, and signal synchronization.

Precision measurement and data acquisition
Receive various sensor data and provide feedback to the central processing unit.
