KLA Tencor 710-658041-20 processor module

Brand:KLA-Tencor
Model:710-658041-20
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

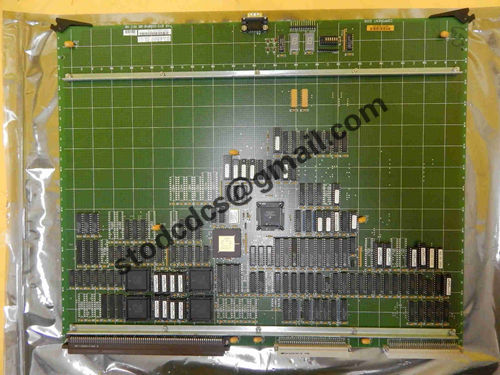

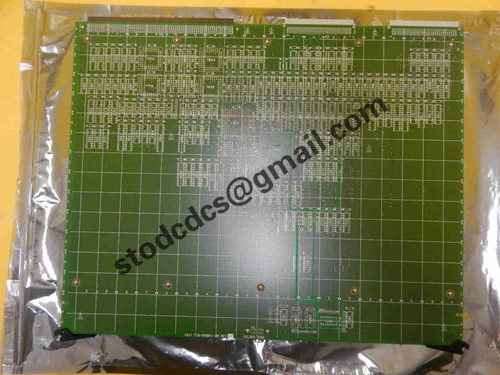

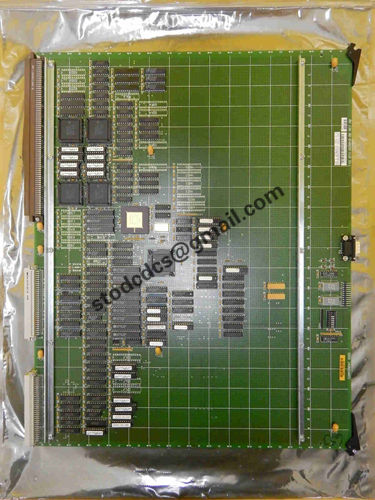

KLA Tencor 710-658041-20 processor module

Product manual:

1、 Product Name and Model
Model: 710-658041-20

Name: Alignment Processor Phase 3 (3rd Generation Alignment Processor)

Mainly used for semiconductor testing equipment such as KLA Tencor 2132

2、 Function Introduction
This module is responsible for pattern alignment processing to ensure precise alignment of wafer or mask patterns.

Process signal data from sensors, perform necessary calculations and synchronization.

Send the processing results to other control modules in the system to achieve coordinated operation of the detection equipment.

3、 Application Fields
Mainly used in KLA Tencor 2132 series semiconductor detection systems.

Can be used for critical overlay detection and alignment detection processes in wafer manufacturing.

Plays an important role in key processes such as pattern recognition, positioning, and error correction.

4、 Usage and maintenance suggestions
When purchasing, it is necessary to confirm the hardware version and device compatibility of the module.

Installation and debugging should be carried out by professional technicians to ensure the overall performance of the equipment.

Regularly check the operation status of modules to avoid affecting detection accuracy due to hardware failures.

5、 Summary
The 710-658041-20 processor module is the core component of the KLA Tencor detection system,
Focusing on pattern alignment processing is an important component for ensuring semiconductor detection accuracy and stable equipment operation.
