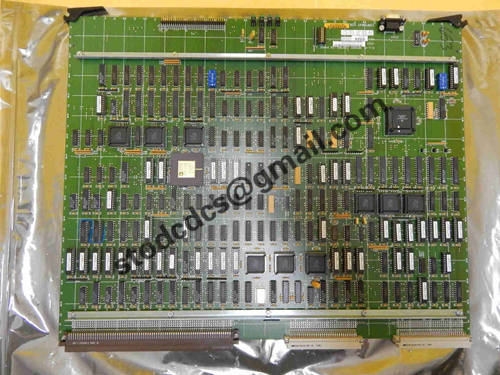

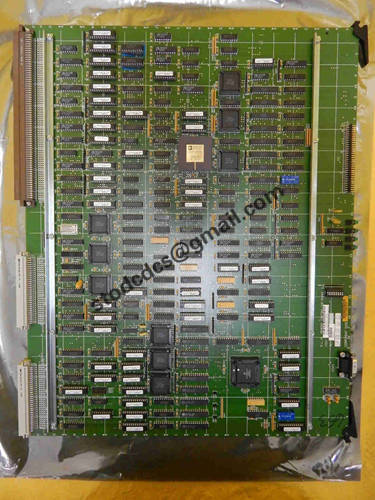

KLA Tencor 710-658232-20 Memory Controller

Brand:KLA-Tencor
Model:710-658232-20
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

KLA Tencor 710-658232-20 Memory Controller

Product manual:

KLA Tencor 710-658232-20 Memory Controller
Product Overview:
This memory controller is an important core module used for data management and processing in KLA Tencor wafer inspection systems (such as the 2132 series),

Core functions
Memory Management and Optimization
The data access between various data caches, DDR memory, or embedded RAM modules in the control system,
Improve memory bandwidth utilization and reduce data access conflicts.

Data flow coordination
Implement data exchange scheduling between image acquisition cards, image processing units, and storage controllers,
Ensure the accuracy and timing matching of high-speed data transmission.

Instruction scheduling and buffer control
In real-time image analysis and high-speed control, provide interrupt response, read/write priority
Logical mechanisms such as FIFO management ensure the stability of data processing.

System bus interface support
Compatible with motherboard bus, PCI/PCIe subsystem,
Communication with other modules through specific bus protocols, supporting high bandwidth data communication links.

Technical Characteristics
Multi layer high-density PCB design with strong signal integrity and electromagnetic compatibility performance.

Industrial grade components are selected to operate stably in environments with high loads and clean room requirements for a long time.

Onboard cache system with local cache and high-speed cache control logic to improve data processing efficiency.

Redundancy protection mechanism, supporting error detection and correction (ECC) or hardware watchdog function to enhance fault tolerance.

Typical application scenarios
Wafer defect detection equipment: coordinates a large amount of high-speed data streams between image acquisition and image processing units.

Image analysis system: Provides cache scheduling and memory control services for high-speed image processing chips.

Semiconductor automatic detection platform: integrated into the main control framework of the system, serving as a key control node for the data channel.
