KLA Tencor 710-658669-00 Analog Digital Channel Module

Product manual:

KLA Tencor 710-658669-00 Analog Digital Channel Module Detailed Introduction
1. Product Overview
KLA Tencor 710-658669-00 is a key module specifically designed for semiconductor wafer defect detection equipment, commonly found in the KLA Instruments 2138 series detection systems.

2. Main functions
Analog signal processing: receiving analog signals from detection sensors,
Perform necessary amplification, filtering, and adjustment to ensure the stability and accuracy of the signal.

Digital signal conversion: converting processed analog signals into digital signals,
Facilitating subsequent digital analysis and data processing.

Phase Locked Loop (PLL) technology: using PLL to achieve precise synchronization and frequency stability of signals,
Improve the accuracy and repeatability of detection.

Data transmission interface: The module supports high-speed data communication with the main control system,
Ensure real-time transmission and processing of detection data.

3. Technical parameters (general situation)
Module Type: Analog/Digital Channel Module

Applicable equipment: KLA Instruments 2138 wafer defect detection system

Work environment: Industrial grade design, supporting long-term stable operation

Performance indicators: high-precision signal processing, low-noise design, ensuring detection sensitivity

Dimensions and interfaces: Installation specifications and connection methods that comply with equipment standards

4. Precautions for use
Installation and disassembly should be carried out by professional technicians to avoid static electricity and mechanical damage.

Maintain stable connections between power and signal lines to avoid data errors caused by poor contact.

Regular maintenance and checking of module operation status to prevent performance degradation due to aging or environmental impact.

Avoid using in harsh environments such as high humidity and high dust to extend the lifespan of the module.

5. Scope of application
Defect detection equipment in semiconductor wafer manufacturing process

Industrial detection systems that require precise analog signal acquisition and digital conversion

Automatic detection system for KLA Instruments 2138 and compatible models

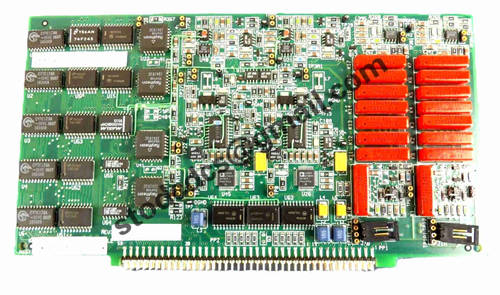

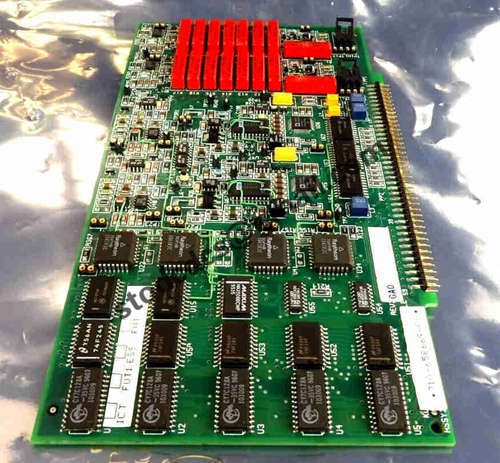

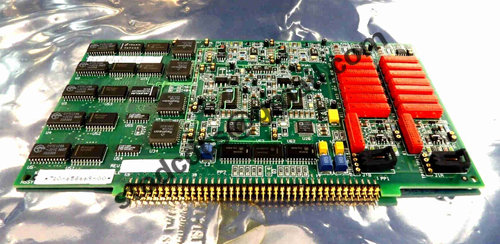

Product details picture:
