KLA Tencor 710-806050-01 Image Processing Board

Product manual:

1、 Basic Information
Product model: 710-806050-01

Manufacturer: KLA Tencor

Product Name: Image Processing Board

Application direction: Used for image acquisition, image analysis, and processing tasks in KLA Tencor semiconductor detection/measurement equipment

2、 Product Function and Usage

Real time image acquisition and high-speed processing

Image comparison, edge detection, defect recognition and classification

Cooperate with CCD or CMOS image sensors to achieve high-precision detection

Preliminary analysis, feature extraction, and digital signal conversion of image data

Provide image data output to the main control system or storage unit for the system

3、 Technical characteristics (typical)
Project Description
Image input interface with multi-channel digital video stream input (matched with optical acquisition module)
Image output: After processing the digital image signal, it is transmitted to the motherboard or processing module
The data channel supports parallel image processing and multi-core collaborative analysis
Image processing chip integrated with FPGA/DSP/image coprocessor (depending on version)
Storage supports configuring high-speed cache, supporting temporary storage and fast access of image frames
Communication interface PCIe/VME/customized high-speed bus interface (device specific)
System compatibility compatible with multiple KLA detection platforms (such as Surfscan, eSxxx series)
Stability design with anti-interference, temperature control protection, and electrostatic protection capabilities

4、 Applicable equipment
This type of image processing board is generally suitable for the following types of KLA Tencor systems:

Optical defect detection system (such as optical scanning system, particle counter)

Wafer surface inspection system

CD-SEM image enhancement system

Visual recognition processing module in automatic alignment system

5、 Product advantages
High performance processing capability: supports real-time processing of high-resolution images

Dedicated architecture design: optimizing image acquisition and algorithm running efficiency

Modular structure: convenient for equipment maintenance and board replacement

High system compatibility: stable operation on KLA's entire core platform series

Enhanced robustness: suitable for clean environments and long-term operational tasks in semiconductor factories

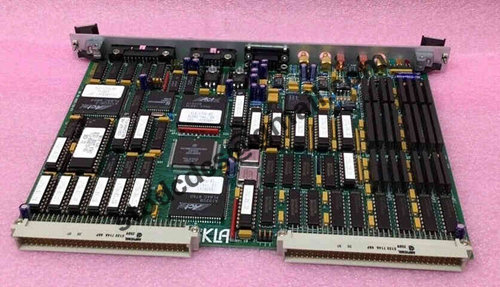

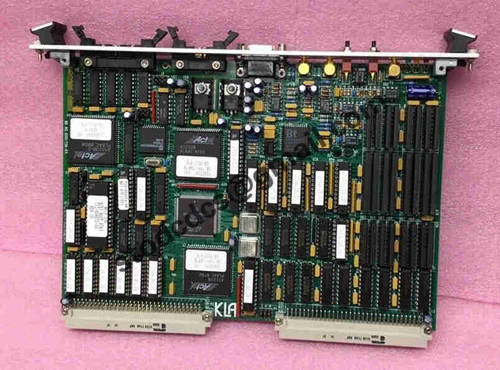

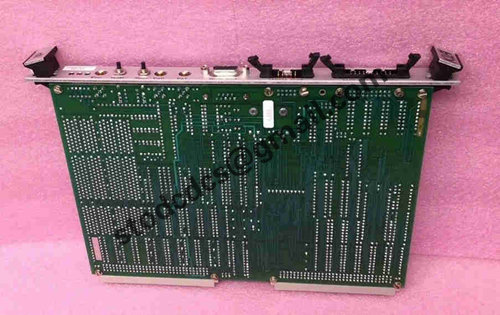

Product details picture:
