KLA Tencor 712-404561-00 processor module

Product manual:

KLA Tencor 712-404561-00 Processor Module
It is the core computing and control unit in KLA Tencor's high-end semiconductor detection and measurement equipment,
Mainly responsible for high-speed processing of data collection, execution of control instructions, and overall coordination of system functions.
It is an important foundational component for achieving intelligent and automated operation of devices.

1、 Product Overview
Product model: 712-404561-00

Type: Processor Module

Brand: KLA Tencor

System: KLA Tencor 712 series detection/measurement platform

Functional positioning: Equipment core control and data processing platform

2、 Core functions
Function item description
The central processing unit is equipped with high-performance embedded CPUs or industrial grade processors, which execute complex control algorithms and task scheduling.
Real time data processing involves high-speed analysis and processing of data collected from image boards, sensor modules, scanning systems, and other units.
The system coordinates and controls the operation status of various sub modules of the entire machine, achieving motion control, optical control, data acquisition synchronization, etc.
The communication interface supports multiple industrial grade communication interfaces (such as Ethernet, RS-232/422/485, CAN, USB, PXI, etc.) to interact with other modules or upper level systems.
The software environment supports KLA specific operating systems or customized firmware, which can be upgraded and remotely managed.

3、 Application Fields
Wafer defect detection system
Implement defect recognition, image processing algorithms, and platform control strategies to achieve high-speed and high-precision wafer surface scanning and analysis.

Automatic optical metrology system
Control tasks such as laser measurement, morphology measurement, edge recognition, and real-time linkage with image systems.

Coordination between platform and scanning system
As the main control unit, it collaborates with servo drives, encoders, image systems, etc. to achieve stable and accurate measurement actions.

Data Collection and Transmission Center
Undertake real-time management and uploading of a large amount of image data, control data, and sensor signals.

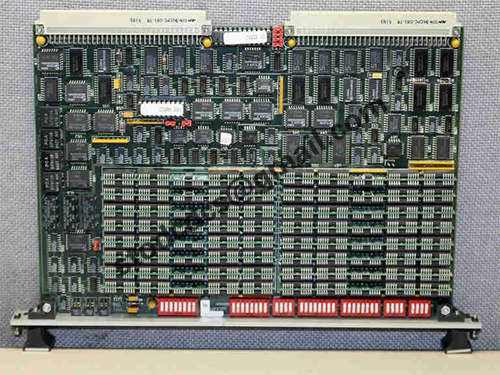

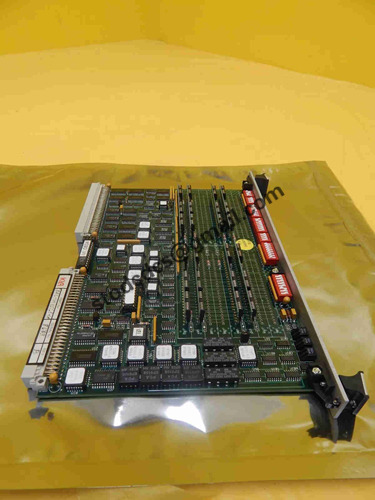

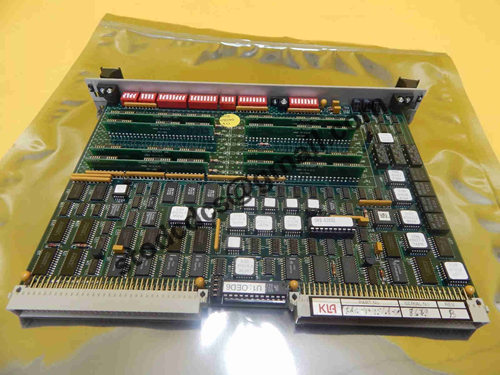

Product details picture:

712-404561-00
