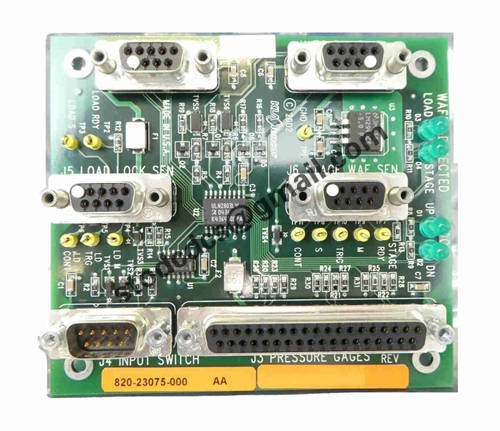

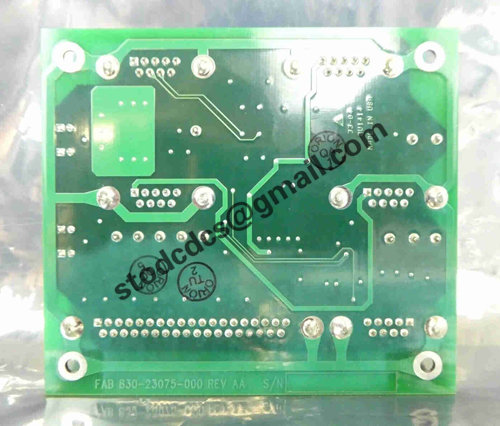

KLA Tencor 820-23075-000 Interface Connector Board

Product manual:

The KLA Tencor 820-23075-000 interface connector board is an electronic component used for internal module connections in semiconductor testing equipment,
Mainly used in high-end wafer inspection equipment, especially in electron beam (E-beam) inspection platforms.
The following is a detailed explanation of its product application areas:

product type
Part number: 820-23075-000

Name: Interface Connector Board

Manufacturer: KLA Tencor

Product application areas
1. Electron beam wafer defect detection system
Widely used in KLA Tencor eS series (such as eS31) electron beam wafer inspection equipment.

These devices utilize electron beam scanning to achieve sub micron level wafer surface defect detection,
Suitable for manufacturing processes at advanced process nodes (such as 7nm, 5nm, 3nm).

2. Internal communication and connection of equipment
This board serves as an internal module for the system
The signal and power connection center between image acquisition, power distribution, processors, controllers, etc.

Equipped with high-density wiring and multi interface support, ensuring stable transmission of high-speed data and control signals.

3. Collaborative control in high-precision detection environments
In extremely complex and high-precision detection platforms, the interface connector board ensures precise synchronization between various control modules,
Helps maintain consistency in image resolution, scanning speed, and data processing coordination.

4. Reliability and anti-interference design
Emphasis is placed on electrical isolation and electromagnetic interference resistance in design,
Ensure system reliability is maintained in high-speed and high-frequency operating environments.

Typical usage environment
Semiconductor wafer manufacturing factories (such as TSMC, Intel, Samsung)

High end IC Design and Chip Testing Center

Advanced process monitoring station in wafer manufacturing process
