Koyo D4-32TD2 output module

Product manual:

The Koyo D4-32TD2 output module is a digital transistor output module suitable for Koyo DirectLOGIC 405 series PLC systems, used to control external DC loads such as solenoid valves, relays, or other DC drive devices.

1、 Basic Information
Project Content
Brand Koyo (Automation Direct)
Series DirectLOGIC 405 (DL405)
Product model D4-32TD2
Module type: Digital output module (transistor output)
32 channel output points (common anode configuration)
Output type NPN transistor output (Sinking)
Output voltage 5-24 VDC (maximum 30 VDC)
The maximum load current per point is 0.5 A, and the total maximum is 4 A
Response time OFF → ON: 1.0 ms; ON → OFF：1.0 ms
Insulation method optocoupler isolation (logic side and load side)

2、 Technical specifications
Project parameters
Logic voltage 5-24 VDC (input current approximately 7 mA)
Module current consumption is approximately 150 mA (logic power supply)
Output protection with short circuit protection and overload protection
Isolation voltage channel and logic side: 1500 V RMS (optically isolated)
Wiring method: Removable Terminal Block
Installation method: Install on the DL405 base
The module size is consistent with the standard DL405 module

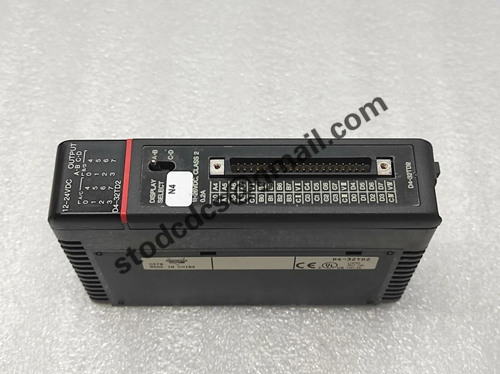

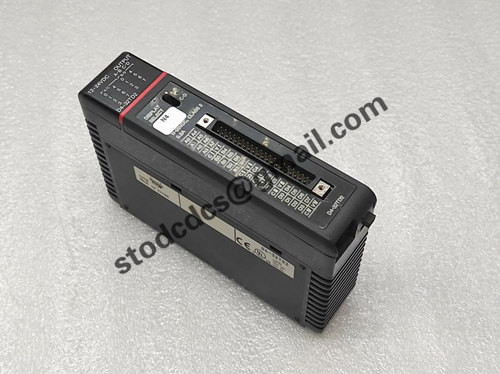

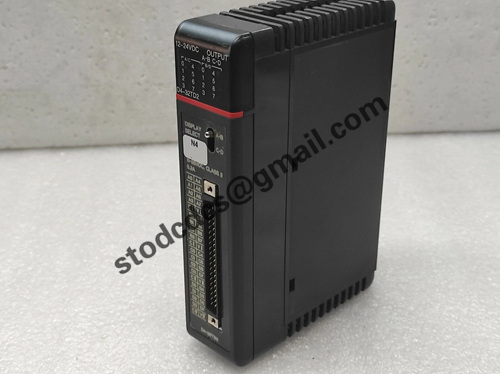

Product details picture:
