LAM 810-068158-014 Robot Interface Board

Product manual:

Basic information
Product Name: Node Robot Interface Board

Model: 810-068158-014

Manufacturer: LAM Research

Equipment type: Interface control board (for robot signal transmission)

Typical application: Widely used in semiconductor processing equipment to achieve signal interaction and communication connection between the main control system and the handling robot

Function Description
Provide communication interface with robot actuators for state feedback, action control, sensor input-output management, etc

Support standard industrial communication protocols (specific protocols need to refer to equipment documentation or configuration)

Usually used in conjunction with the wafer handling system in LAM equipment to ensure automated equipment processes

Technical Parameter
Interface type: Multi channel I/O (input/output) connection

Supply voltage: typically 24 VDC (depending on equipment configuration)

Data communication rate: depends on the system communication bus (such as RS-232, RS-485, or Ethernet)

Installation method: Installed in the standard 3U/6U modular control board slot or independent control box

Physical parameters
Size: Approximately 163 × 38 × 58 millimeters

Weight: Approximately 0.4 kilograms

Shell material: Industrial grade PCB board, anti-static and anti-interference treatment

Operating environment: Working temperature 0-50 ° C, relative humidity<85%, no condensation

Summary of Characteristics
Stable and reliable, suitable for high-precision robot control

Easy to integrate into LAM wafer processing systems

Support modular replacement for easy maintenance

Having basic fault diagnosis and status indication functions

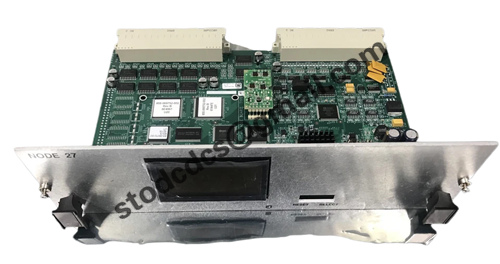

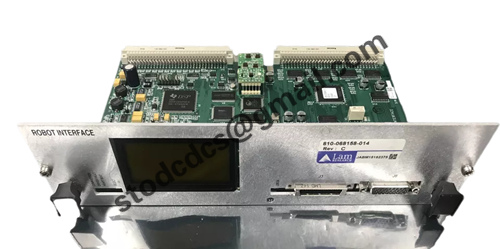

Product details picture:
