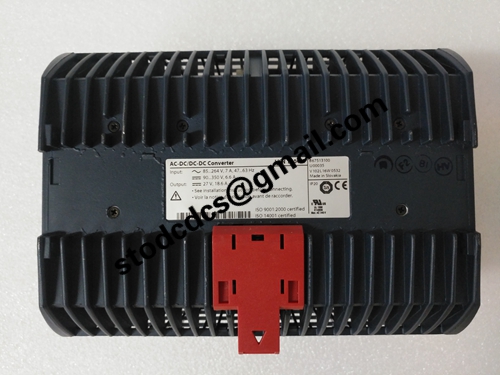

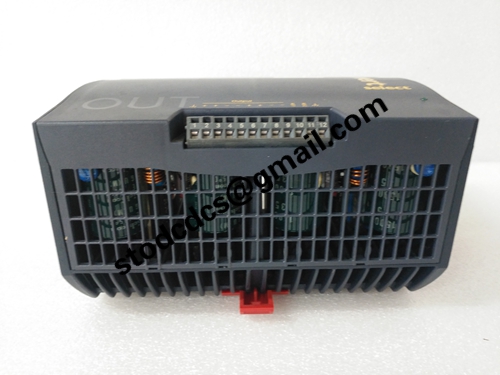

LXN1604-6 power module

Model: LXN1604-6
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

LXN1604-6 power module

Product manual:

LXN1604-6 is an industrial grade DC power module used in automation control systems to provide stable and reliable DC power to controllers, I/O modules, sensors, and field devices. It is suitable for DIN rail installation and can adapt to various power environments in industrial sites.

Application field

DC power supply inside the control cabinet and rack

Distributed Control System (DCS) and PLC System

Power supply for sensors, actuators, and I/O units

Manufacturing, chemical, power and automation production lines

Industrial equipment expansion and system upgrade power supply

Main functions and features

Wide input voltage range: Supports AC 85V – 264V or DC 90V – 350V input, suitable for various industrial power supply conditions.

Stable output: Provides 24 VDC output, current of approximately 20 A, total power of approximately 500 W, meeting the requirements of the control system.

High efficiency and reliability: The voltage regulation design ensures long-term stability during operation.

Multiple protection: equipped with overload, overvoltage, short circuit and other protection functions to enhance system safety.

Modular installation: DIN rail design for easy control cabinet layout and maintenance.

Industrial grade adaptability: It can work stably in environments ranging from -40 ° C to+60 ° C, and is resistant to vibration and electromagnetic interference.

working principle

The power module receives external power input → internal stabilization and filtering → outputs stable DC voltage → supplies power to downstream controllers, I/O modules, or sensors. The module monitors the output status in real-time, and if there are any abnormalities, protective power outages or restrictions will be implemented to ensure equipment safety.
