MAGNETEK 46S01661-0010 driver board

Product manual:

Product application areas
1. Crane control system
This drive board is often used as a key electronic component in crane specific control systems, in conjunction with frequency converters or DC drives,
Undertake the collection, adjustment, and output of motor control signals.
Suitable for operation, lifting, or amplitude control modules in equipment such as bridge cranes, gantry cranes, and gantry cranes.

2. Internal modules of variable frequency drive
As the core submodule of the MAGNETEK series driver, the 46S01661-0010 driver board is used to control the switching logic of power devices,
Implementing functions such as inverter control, PWM signal generation, and motor speed regulation is an important guarantee component for the stable operation of frequency converters.

3. Industrial automation equipment
Widely used in industrial control cabinets and automated mechanical equipment,
Used to coordinate the execution of motor start stop, speed adjustment, overload detection and other functions, adapting to the control requirements of various continuous or periodic industrial equipment.

4. Elevators and lifting platforms
As one of the main control boards or sub control modules involved in speed regulation and safety control in elevators or industrial lifting equipment,
Ensure smooth, efficient, and timely lifting and lowering.

5. Special Machinery Control System
Can be used as motor control units in special equipment such as metallurgical equipment, automatic winches, and stackers,
Especially suitable for situations that require high reliability and frequent control response.

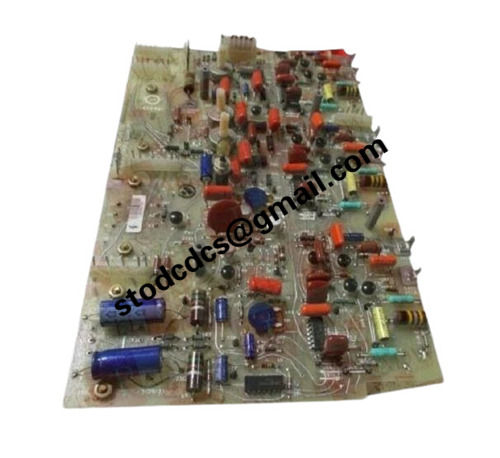

Product details picture:

46S01661-0010
