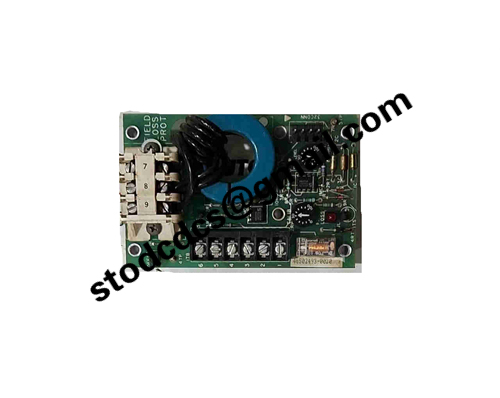

MAGNETEK 46S02493-0020 driver circuit board

Brand:Microsys
Model:46S02493-0020
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

MAGNETEK 46S02493-0020 driver circuit board

Product manual:

product overview
MAGNETEK 46S02493-0020 is a driver circuit board used for industrial frequency converters or AC drive systems. This board is one of the core modules inside the driver, responsible for converting the signals emitted by the control circuit into the driving signals required by the power circuit, thereby achieving precise control of IGBT or other power devices. It ensures the stable operation and response efficiency of the entire drive system.

Product Features
High response driving capability
Can effectively drive high-speed switching devices (such as IGBT modules) and improve system dynamic performance.

Signal isolation and protection
Usually equipped with safety designs such as optocouplers and voltage clamps to ensure good isolation between control signals and power components.

Multi channel output control
Support the three channel or six channel drive logic output required for three-phase motor control.

Stable signal conversion
Accurately convert low-voltage control signals into levels and pulse widths suitable for power module driving.

Modular design
Easy to replace and maintain, suitable for various Magnetek industrial drive series.

application area
Internal components of industrial frequency converters and motor drivers
Used as a core control link to drive power devices such as IGBT and MOSFET, achieving speed and power regulation.

Lifting equipment and hoisting system
Provide efficient and safe driving signals when controlling motor actions such as lifting and amplitude adjustment.

Automated Machinery
Drive motor equipment in industries such as packaging, textiles, and logistics to ensure efficient operation.

Metallurgical and mining equipment
Provide reliable power control support in high load and high-frequency start stop environments.

Large scale fan and water pump drive system
Ensure stable start stop and smooth operation of the power section to improve overall energy efficiency and lifespan.
