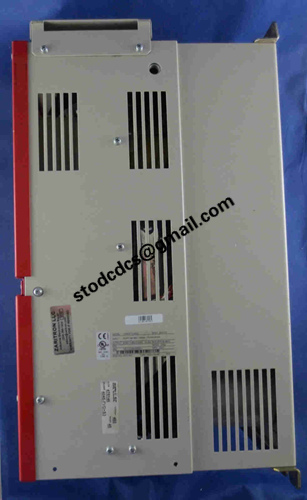

Magnetek CIMR-F7U4022 Vector Variable Frequency Drive

Brand:Magnetek
Model:CIMR-F7U4022
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Magnetek CIMR-F7U4022 Vector Variable Frequency Drive

Product manual:

product overview
Magnetek CIMR-F7U4022 is a high-performance Vector Inverter Drive designed specifically for precise speed and torque control of industrial AC motors. Its core control algorithm supports Sensorless Vector Control, achieving low-speed high torque output and suitable for various complex load scenarios. This driver is widely used in pumps, fans, conveyors, and industrial automation equipment.

Technical Parameter
Model: CIMR-F7U4022

Input voltage: Three phase 480 VAC ± 10%

Rated power: approximately 22 kW (30 HP)

Rated output current: approximately 38 A

Output frequency range: 0.1 Hz to 400 Hz

Control method:

Vector control (sensorless vector control)

V/f control

Protection functions: overcurrent, overvoltage, undervoltage, overload, overheating, short circuit protection, etc

Communication interface: Built in Modbus, supports optional industrial protocols such as Profibus and DeviceNet

Cooling method: forced air cooling

Protection level: Standard NEMA 1 (optional IP20/NEMA 12)

Environmental temperature: Operating temperature range -10 ℃ to 50 ℃

Operation mode: panel control or remote PLC control

Application scenarios
Pumps and fans: achieve energy-saving speed regulation and stable control, widely used in HVAC, sewage treatment and other systems

Conveyor equipment: used for belt conveyors and elevators to achieve flexible speed regulation

Processing machinery: meets the high-precision requirements of speed and torque for automated production lines

Heavy duty machinery: suitable for high starting torque loads such as cranes and crushers
