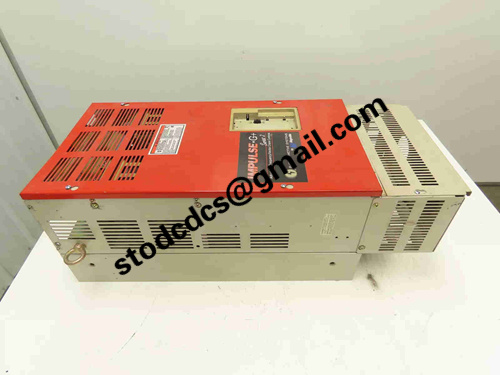

MAGNETEK CIMR-G5M4045 Drive Crane

Brand:Magnetek
Model:CIMR-G5M4045
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

MAGNETEK CIMR-G5M4045 Drive Crane

Product manual:

MAGNETEK CIMR-G5M4045 Driver - Introduction to Crane Applications
1、 Product Overview
CIMR-G5M4045 is a variable frequency drive from Mitsubishi G5 series, which Magnetek often sees as a distributor or agent. This driver is widely used in the field of motor control for cranes and heavy-duty industrial equipment due to its stable performance and high reliability.

2、 Basic specifications of the driver
Rated power: approximately 45 kW (60 HP)

Input voltage: three-phase 380~480 VAC

Control methods: vector control (sensorless vector control) and V/f control

Overload capacity: 150% rated current, lasting for 1 minute

Frequency range: 0.1 Hz to 400 Hz

Cooling method: forced air cooling

3、 Typical application functions of crane drive
Enhance control

Accurately adjust the motor speed to ensure smooth lifting and lowering of the crane hook

Support soft start and soft stop, reduce mechanical impact and improve equipment lifespan

Walking control

Control the speed and direction of the crane wheel drive motor to ensure smooth movement

Realize multi speed control to adapt to different operating conditions

Lateral and rotational control

Multi axis coordinated control ensures precise positioning of crane lifting equipment

Support synchronous control to reduce vibration and mechanical wear

Safety protection function

Overcurrent, overvoltage, undervoltage, overheating, and short circuit protection

Fault diagnosis and alarm to ensure the safe and stable operation of the system

Communication and Integration

Can be integrated with PLC and industrial control systems, and achieve remote monitoring and control through Modbus or other industrial communication protocols

Support linkage with the operation panel to achieve seamless switching between on-site and remote operations
