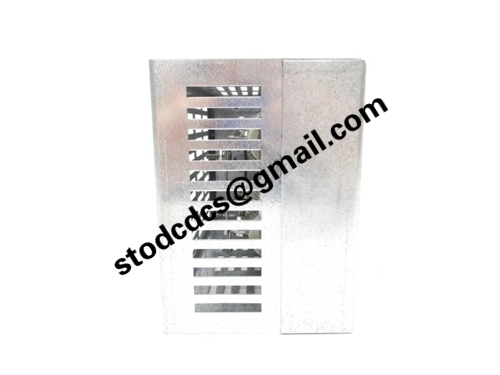

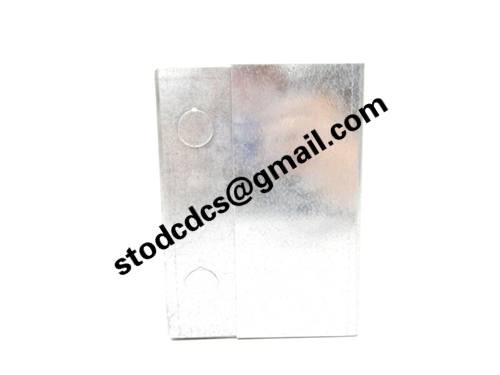

MAGNETEK EDB4007DT brake resistor

Brand:Magnetek
Model:EDB4007DT
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

MAGNETEK EDB4007DT brake resistor

Product manual:

1、 Product Overview
MAGNETEK EDB4007DT is a dynamic braking resistor designed specifically for use with frequency converter systems,
Suitable for motor drive systems in the small and medium power range. The main function of this resistor is to absorb feedback electrical energy during the braking or deceleration process of the motor,
To prevent excessive DC bus voltage and ensure the safe operation of the frequency converter and the entire control system.

2、 Product Features
Suitable for small and medium power applications

Usually suitable for frequency converter systems within the range of 5HP to 10HP, meeting the braking requirements of general industrial loads.

High response speed

It can quickly put into operation during the motor braking process, effectively absorb excess energy, and avoid bus overvoltage causing the driver to trip.

Compact structure, easy to install

The module is compact in size, making it easy to integrate into the control cabinet or install externally, saving space and having simple wiring.

Good thermal stability

Made of high-temperature resistant materials, it has excellent heat dissipation performance and is suitable for high-frequency start stop or multiple braking in a short period of time.

Wide compatibility

It can be used in conjunction with multiple series of frequency converters from MAGNETEK, with strong adaptability, and is also suitable for other brands of general-purpose VFDs.

Reliable safety protection performance

Equipped with safety designs such as overheating protection and resistor packaging protection, it effectively extends the service life of equipment and prevents potential faults.

simple maintenance

Modular design, easy to replace and detect, suitable for rapid maintenance on industrial sites.
