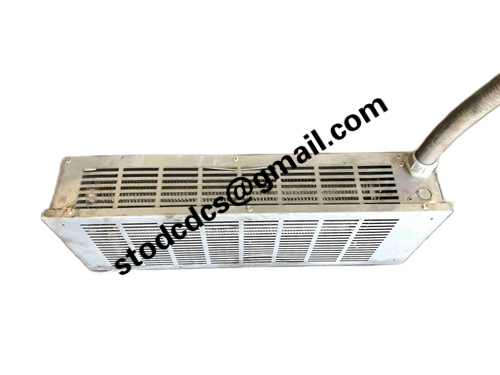

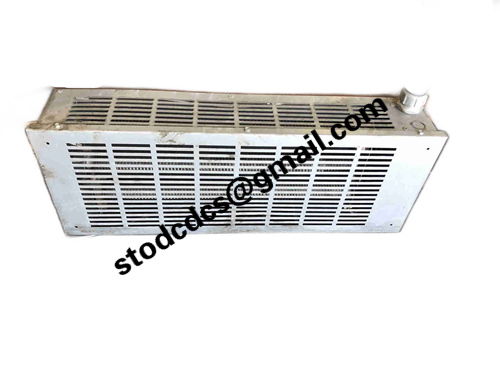

Magnetek EDB4065DT dynamic braking resistor

Brand:Magnetek
Model: EDB4065DT
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Magnetek EDB4065DT dynamic braking resistor

Product manual:

product overview
Magnetek EDB4065DT is a dynamic braking resistor specifically designed for variable frequency drive systems,
Used to absorb excess energy generated by the frequency converter during braking or deceleration, protecting the safe operation of the drive and motor.
The resistor is designed to be sturdy, suitable for high temperature and high-power pulse loads in industrial environments, ensuring system stability and extending equipment life.

Technical Parameter
Model: EDB4065DT

Resistance type: dynamic braking resistor

Rated power: generally at the level of 40 kW (depending on the driver matching)

Resistance value: Designed according to the model and application requirements, the common range is several tens of ohms (please confirm according to the driver manual for details)

Voltage resistance level: Suitable for high voltage DC bus voltage

Structural form: Metal frame or encapsulated resistor unit with good heat dissipation

Installation method: Fixed installation inside the panel or cabinet

Working temperature range: -40 ℃ to+85 ℃ (industrial standard)

Application scenarios
Dynamic braking of frequency converter
The dynamic braking resistor is installed at the output end of the frequency converter braking unit to absorb excess energy during rapid deceleration of the motor and prevent voltage rise from damaging the equipment.

Heavy duty machinery such as cranes and hoists
When the equipment stops quickly or the load drops, the braking resistor ensures safe braking of the motor and prevents system overload.

Industrial equipment such as pumps and fans
Realize efficient and reliable motor deceleration control to improve the safety and stability of process equipment.

Product advantages
Efficient heat dissipation design: ensuring long-term stable operation of resistors during high-power braking

Strong ability to withstand pulse loads: suitable for frequent starting and braking conditions

Sturdy structure: resistant to vibration and corrosion, suitable for harsh industrial environments

Good compatibility: Compatible with Magnetek and multiple brands of frequency converters, facilitating system integration and maintenance
