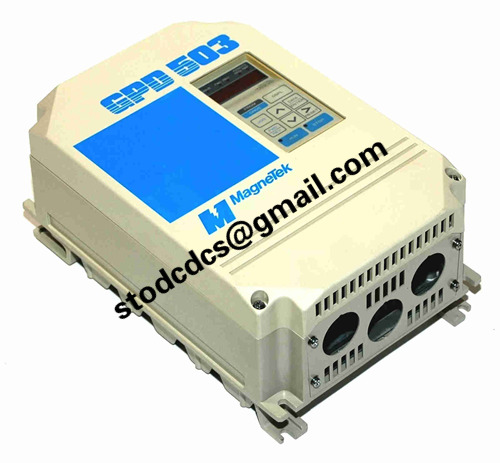

MAGNETEK GPD503-DS305 AC Motor Driver

Brand:Magnetek
Model:GPD503-DS305
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

MAGNETEK GPD503-DS305 AC Motor Driver

Product manual:

1、 Product Overview
MAGNETEK GPD503-DS305 is a three-phase AC motor driver (frequency converter) in the GPD503 series, designed specifically for high-performance industrial motor control applications. This driver supports universal three-phase induction motors and adopts V/f control mode, with robust overload capacity and environmental adaptability, suitable for use in various industrial automation systems.

2、 Core technical specifications (typical)
Model: GPD503-DS305

Applicable motor type: three-phase induction motor

Input voltage: three-phase 380-460 VAC, 50/60 Hz

Control mode: V/f (voltage/frequency) control

Output frequency range: 0.1 Hz to 400 Hz

Rated power: specific HP corresponding to the serial number "DS305" (to be combined with the nameplate)

Overload capacity: 150% current for 1 minute

Cooling method: air cooling

Installation method: wall mounted or embedded in control cabinet

3、 Main product features
1. Robust V/f control technology
Provide standard curves and programmable V/f curves to adapt to different load types (constant torque, variable torque)

Dynamic response optimization can be achieved through slip compensation and acceleration/deceleration settings

2. Multi level protection function
Built in protection mechanisms for overvoltage, undervoltage, overcurrent, overheating, grounding short circuit, etc

Quick response of fault detection function, supporting fault recording and automatic reset settings

3. Programmable input/output interface
Up to 5 digital inputs and 2 analog inputs

Provide relay output and analog voltage/current output signals for status indication or feedback control

All I/O can be flexibly configured for functionality through parameters

4. Convenient parameter setting and debugging
The front panel operator has LED display and multifunctional key control operation

Provide fast parameter copying function for convenient multi machine configuration

Equipped with basic automatic adjustment function, reducing startup and debugging time

5. Strong environmental adaptability
Support stable operation in harsh environments (with dust prevention measures)

Wide temperature working range, suitable for installation of control cabinets and on-site equipment
