MAGNETEK GPD506V-A054 AC Driver

Product manual:

MAGNETEK GPD506V-A054 AC Driver
Product usage form

Embedded installation of standard control cabinet

Drivers are usually installed in electrical control cabinets and form a complete control system with circuit breakers, contactors, PLCs, etc;

Supports wall or flange installation methods, making it convenient to deploy in limited spaces on industrial sites.

Variable frequency speed control mode

Can serve as the speed control core for three-phase asynchronous motors, providing voltage/frequency stabilization control or frequency conversion control functions,
Suitable for equipment that operates continuously or experiences significant fluctuations in working conditions;

Supports both V/f control and open-loop vector control to meet different precision and cost requirements.

Local/remote dual-mode operation

The drive panel can perform local startup, frequency setting, and fault diagnosis;

Simultaneously supporting remote control, connecting button switches or PLC logic through external terminals,
Implement remote start stop, speed adjustment, etc.

Analog signal/digital signal control access

Support 0-10V or 4-20mA analog input to achieve continuous speed control;

For applications that require rapid deceleration or high load inertia (such as lifting and hoisting equipment),
External braking resistors or braking units can be connected to enhance braking capability;

Helps prevent overvoltage tripping caused by rapid shutdown.

Integrated operation of communication interface

Beneficial for centralized monitoring, multi drive control, or SCADA system integration.

Multi drive linkage control form

In practical engineering, it can run in parallel with multiple GPD506V drivers,
Used for collaborative operation of multiple motors (such as conveyor belt linkage, fan group control, etc.).

Fault self inspection and operation log recording

The self check function can be activated to check input voltage, grounding, overheating, etc. before operation;

Built in fault memory function, convenient for maintenance personnel to locate problems and adjust parameters.

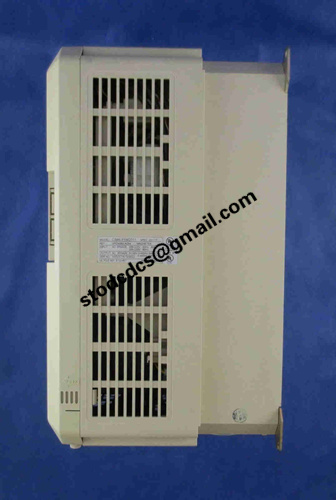

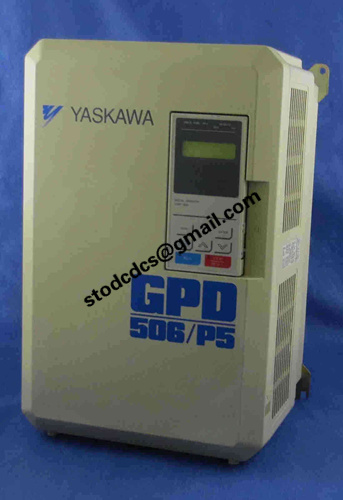

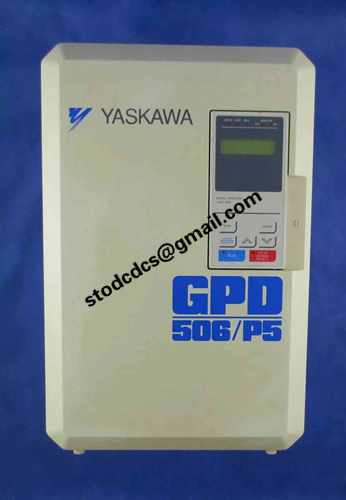

Product details picture:
