Magnetek GPD506V-B096 Driver

Product manual:

MAGNETEK GPD506V-B096 Driver
Product Type: Three phase AC Drive
Series: GPD506V
Rated output: 96 HP (approximately 71.5 kW)
Voltage level: 460V level (three-phase 380-480 VAC)

1、 Product positioning and purpose
GPD506V-B096 belongs to the Magnetek GPD506V high-performance industrial frequency converter series,
Specially designed for speed and torque control of large induction motors, suitable for heavy-duty applications,
Especially in automation systems that require high reliability and overload capacity, it performs excellently.

2、 Main technical parameters
Project specifications
Input voltage three-phase 380-480 VAC ± 10%
Output power 96 HP (71.5 kW)
Output frequency range 0.1-400 Hz
Control mode V/f control (programmable curve)
Overload capacity of 150% rated current, lasting for 1 minute
Cooling method: forced air cooling (with independent fan)
The protection level is usually IP20 (shell needs to be confirmed)
Installation method: Control cabinet embedded or wall mounted

3、 Core features of the product
1. High power driving capability
Can stably drive high-power induction motors above 70kW

Supports high inertia loads, suitable for industrial heavy industry applications such as lifting, mixing, and compression

2. Flexible V/f control function
Multiple voltage frequency characteristic curves can be set (linear, square, user-defined)

Provide slip compensation and frequency hopping band settings to ensure stable operation and vibration isolation

3. Powerful protection and diagnostic mechanisms
Built in overvoltage, undervoltage, overheating, overcurrent, grounding, instantaneous stop and other protections

Fault code display and logging function for quick maintenance and troubleshooting

4. Multi functional I/O interface
Supports multiple programmable digital inputs and outputs (DI/DO)

Provide analog input/output (AI/AO) for speed and current feedback control

Support connecting external operation panels and remote control stations

5. Communication and Expansion Functions
Optional communication modules (such as Modbus, Profibus, DeviceNet)

Seamless integration with PLC and HMI systems for easy integration into industrial control networks

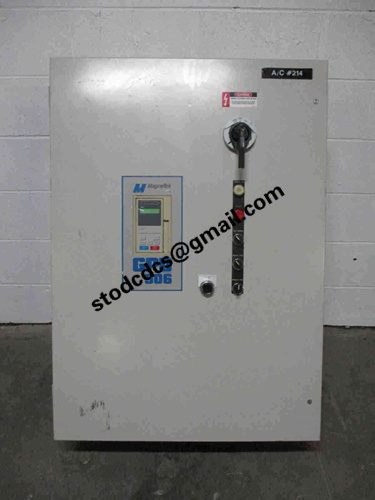

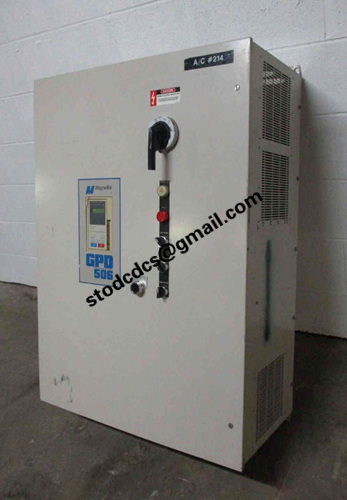

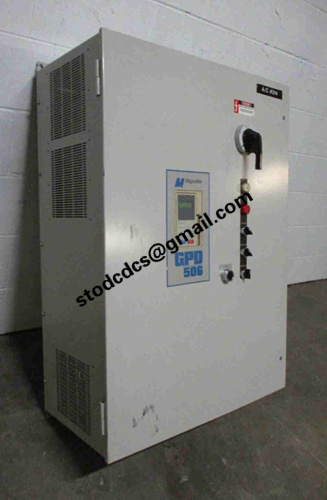

Product details picture:

GPD506V-B096
