MAGNETEK MG3-1C-1F-1J power module

Product manual:

1、 Product Overview
Product model: MG3-1C-1F-1J

Product Type: AC/DC Switching Power Supply Module

Manufacturer: MAGNETEK

Typical applications: Industrial control system power supply, OEM system power supply, communication power supply subsystem, etc

2、 Technical parameters (typical configuration)
Input voltage range: 90-264V AC, 50/60 Hz, universal wide voltage input

Input current: maximum approximately 1.8 A

Output voltage: 24V DC

Output power: approximately 72W

Working temperature range: -40 ° C to+70 ° C

Cooling method: natural air cooling

Protection functions: overvoltage protection, overcurrent protection, short circuit protection, self recovery function

Dimensions: Approximately 105mm × 56mm × 28mm (slightly different depending on the actual packaging)

Weight: Approximately 200 grams

3、 Product Features
Wide input range

Supports global voltage standards (90-264VAC)

Stable operation in industrial or remote areas with power grid fluctuations

Stable output

Output voltage 24VDC, low voltage fluctuation, small ripple

Adapt to various 24V control logic or sensor modules

Efficient and energy-saving

The overall efficiency can reach over 90%, suitable for energy-saving equipment

Multiple protection

Built in OVP (overvoltage), OCP (overcurrent), SCP (short circuit) protection

Automatically shut down output and self recover in case of malfunction, enhancing system security

Modular design

Compact in size, suitable for installation in standard DIN rails or control panels

Wide temperature operation

Stable operation at extreme temperatures (-40 ° C to+70 ° C), suitable for harsh environmental applications

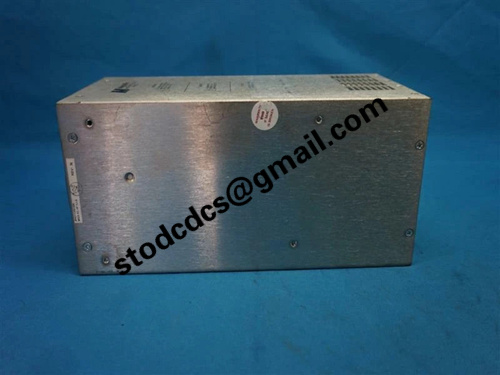

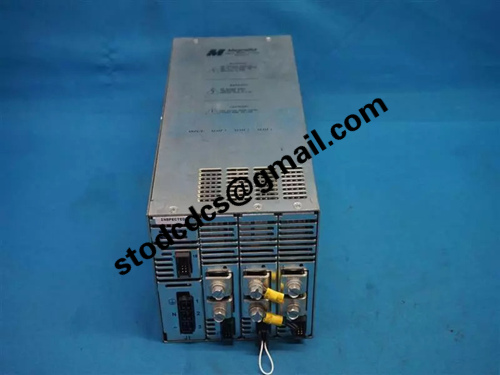

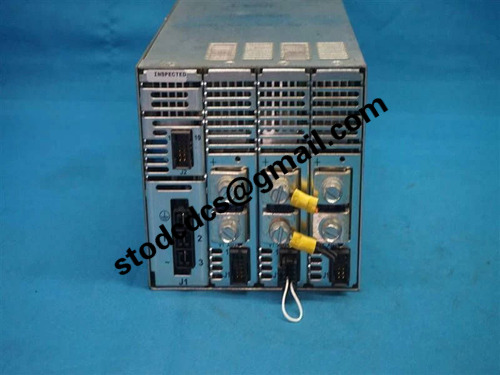

Product details picture:

MG3-1C-1F-1J
