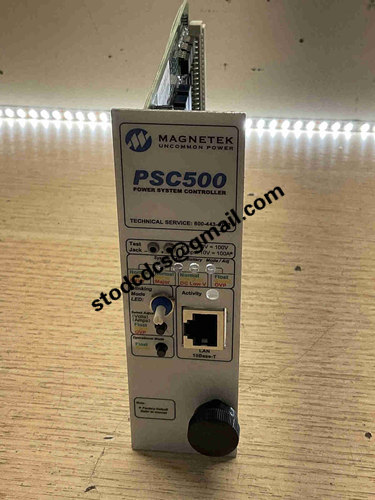

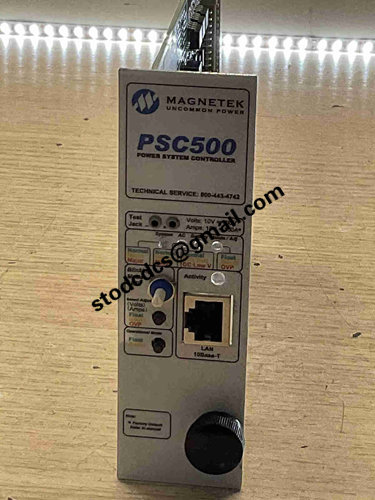

Magnetek PSC500 Power System Controller Card

Brand:Magnetek
Model:PSC500
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Magnetek PSC500 Power System Controller Card

Product manual:

1、 Product Overview
Magnetek PSC500 is a power system controller card designed specifically for industrial and commercial power systems.
It is commonly used for centralized management and intelligent control of power conversion equipment such as rectifiers, inverters, and battery charging systems.

2、 Typical application areas
1. Industrial uninterruptible power supply system (UPS)
Manage rectifiers, inverters, and battery charging units in UPS to ensure stable output voltage

Quickly switch to battery power supply during power outages or voltage fluctuations to ensure continuous operation of critical loads

Monitor temperature, current, voltage, etc. to achieve system self-protection

2. Management of DC Power Plants
Commonly used in DC power supply scenarios such as communication base stations, data centers, railway signal systems, etc

Control the start stop and current sharing of the rectifier module to maintain stable output

Manage the charging status of the battery pack, provide balanced charging, and prevent over discharge control

3. Communication and network infrastructure
Multi module rectifier system for managing communication rooms

Support remote monitoring and network communication to ensure redundant operation of the power supply system

Provide functions such as power failure alarm, remote power-off, and current sharing protection

4. Rail transit and subway power supply system
Monitor the status of rectifiers and backup power sources in the DC rail power supply system

Implement system alarm, overload limit, automatic battery switching and other operations

Can be integrated into the train communication network or SCADA system for unified management

5. Energy and Power Automation System
Used to control power conversion units in hybrid energy systems such as photovoltaic/wind power/energy storage

Coordinate grid connected inverters, DC busbars, and battery charging and discharging control

Provide system fault diagnosis and remote control capabilities
