MC07B0022-5A3-4-00 frequency converter

Product manual:

SEW MC07B0022-5A3-4-00 is MOVITRAC ® The B-series frequency converter is mainly used for speed control of small and medium power AC asynchronous motors. Its features and technical information are as follows:

Basic Parameters

Series: MOVITRAC ® B

Rated power: 2.2 kW

Rated current: approximately 5.5 A

Input voltage: three-phase 380-500 V AC, 50/60 Hz

Output frequency: adjustable, suitable for V/f control

Protection level: IP20

Size/Weight: Approximately 80 × 273.5 × 163.5 mm, Weight: Approximately 2.1 kg

Features

V/f speed control, suitable for most standard asynchronous motors

Built in brake chopper, supports four quadrant control, can achieve braking and reverse operation

EMC C2 suppression, suitable for environments with requirements for electromagnetic compatibility

Optional communication module (such as RS-485/Modbus RTU) for easy integration with PLC or upper computer

Flexible digital/analog input/output interface, capable of controlling start/stop, direction, speed setting, and feedback

Application scenarios

Variable frequency speed control equipment such as pumps, fans, ventilation systems, etc

Machinery such as conveyor lines, handling equipment, packaging machinery, etc. that require adjustable speed, start stop, and braking control

Asynchronous motor drive applications in ordinary industrial automation systems

Can be integrated with industrial control systems such as PLC and HMI to achieve automation control and monitoring

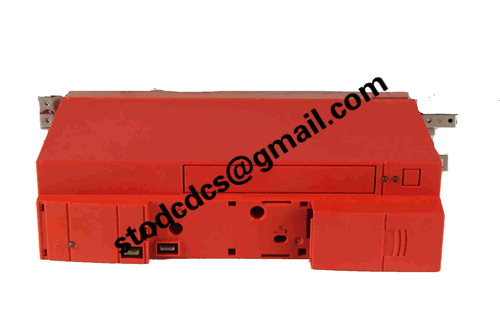

MC07B0022-5A3-4-00 Product details picture:

MC07B0022-5A3-4-00 product video
