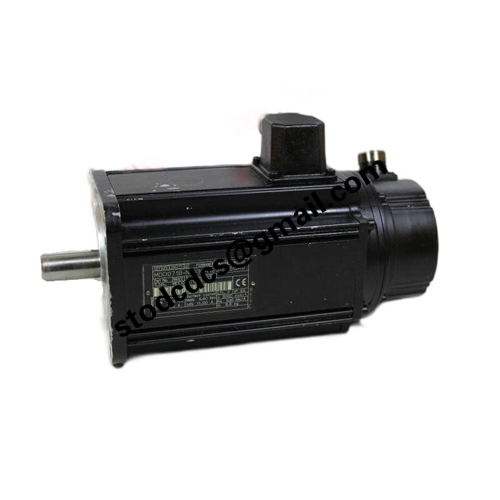

MDD071B-N-030-N2S-095GA0 servo motor

Model:MDD071B-N-030-N2S-095GA0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

MDD071B-N-030-N2S-095GA0 servo motor

Product manual:

Introduction to MDD071B-N-030-N2S-095GA0 servo motor

This model belongs to Bosch Rexroth/Andramat's MDD series high-speed AC servo motor, which is characterized by high speed, low inertia, and fast response. It is suitable for equipment with high requirements for acceleration and repeat positioning accuracy, such as CNC machine tools, packaging machinery, electronic manufacturing equipment, automated moving shafts, etc.

Structure and Performance Characteristics

Rare earth permanent magnet synchronous servo structure
It can maintain stable torque output at high speeds and has high motor efficiency.

Low Inertia Design
Suitable for fast reverse, short cycle rhythm, and frequent start stop motion structures.

High resolution feedback system
N2S "refers to a built-in digital twin encoder (Digital Servo Feedback) that can be used in Indramat drive systems to achieve high-precision closed-loop control.

High reliability mechanical construction
Long bearing life, excellent heat dissipation performance of the shell, suitable for long-term continuous operation.

Standard flange installation
Easy for mechanical integration, suitable for equipment modification and direct replacement applications.

Model code analysis

MDD071B: Machine base number 071, B is the length grade of the fuselage

N-030: Specify winding code, indicating rated speed of approximately 3000 rpm level

N2S: Digital servo feedback encoder (high-resolution)

095GA0: Specify mechanical details such as shaft extension, installation flange size of 95mm, bearing/sealing form, and cable outlet direction
