MODICON AS-B836-016 Isolation Output Module
Product manual:
AS-B836-016 is an isolated output module of the Modicon PLC series under Schneider Electric,
Designed for use in industrial automation systems, providing safe and reliable isolated digital output signals.
2、 Main functions
Output type: Digital isolated output, usually transistor (thyristor) or relay output, the specific model depends on the configuration.
Signal isolation: Electrical isolation between input and output to prevent interference and protect the control system.
Output points: 16 point digital output, suitable for controlling multiple loads.
Status monitoring: Supports output point status feedback for system diagnosis.
Module compatibility: Suitable for Modicon series PLC, easy to install and expand control system.
3、 Technical parameters
Number of output channels: 16 points
Output voltage: generally 24V DC, varies depending on the product version
Maximum output current: usually within the range of 0.5A-1A per point (please refer to the manual for specific models)
Isolation voltage: Typical isolation voltage can reach hundreds of volts or more, ensuring system safety
Response time: Fast response, suitable for industrial automation applications
Installation form: DIN rail installation or rack mounted installation
4、 Application Fields
industrial automation control system
Mechanical equipment switch control
In situations where isolated outputs are required in process control systems
Prevent the control system from being affected by high voltage or noise interference
Power system monitoring and protection
5、 Usage suggestions
Ensure correct wiring during installation, especially for grounding and isolation terminals.
Follow the equipment current and voltage specifications to avoid overloading.
Reasonably use output points in conjunction with PLC programming to prevent hardware damage.
Regularly check the module status to maintain stable system operation.

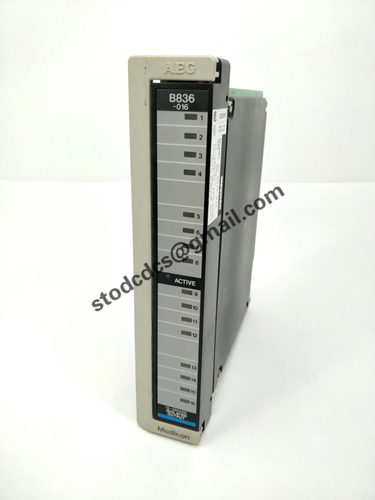

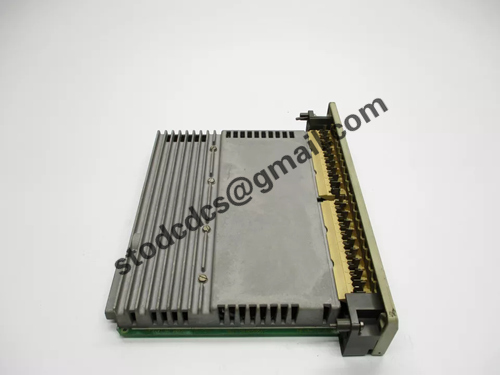

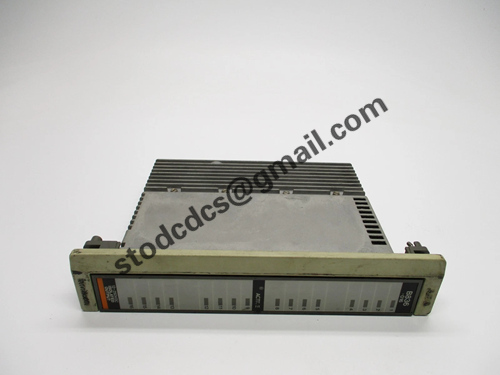

Product details picture:
