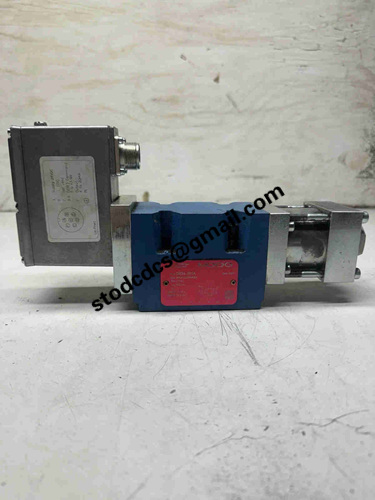

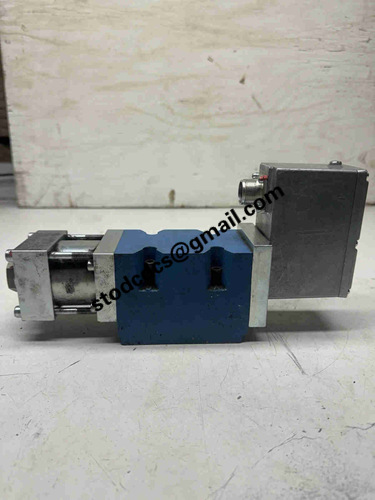

MOOG D634-501A Proportional Valve

Brand: Extreme Networks
Model:D634-501A
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

MOOG D634-501A Proportional Valve

Product manual:

MOOG D634-501A Proportional Valve Description
1、 Overall Overview

MOOG D634-501A is a high-performance hydraulic proportional valve of the D634 series, widely used in industrial automation, machine tool control, testing platforms, and aviation hydraulic systems.
This proportional valve can accurately convert electrical signals into hydraulic flow or pressure output, achieving precise control of actuator position, speed, or force, and is suitable for hydraulic systems that require high precision and high dynamic response.

2、 Main characteristics

Control type: Proportional valve, used for precise flow or pressure control of hydraulic actuators

Control method: electro-hydraulic control, regulating hydraulic flow through DC electrical signals

Valve port type: four port three position or three port two position structure, supporting bidirectional hydraulic control

Response speed: High dynamic response, suitable for fast control systems

Linear characteristics: The output flow rate is highly linear with the input signal, ensuring control accuracy

Repeatability: High repeatability accuracy ensures stable actuator action

Electrical interface: Standard ± 10V or ± 12V signal input, depending on system configuration

3、 Functional Features

high-precision control
D634-501A can achieve precise hydraulic flow and pressure regulation, meeting high demand hydraulic control tasks.

quick response
Optimization of valve body structure for rapid response in high dynamic systems, reducing hysteresis and overshoot.

durable and reliable
The valve body and internal components are made of high-precision machining and wear-resistant materials, suitable for long-term industrial environment use.

wide applicability
Can be used for hydraulic systems such as robotic arms, flight control, industrial automation, and testing platforms.

Easy debugging
Support regulating valve operating characteristics through electrical signals, facilitating system integration and performance optimization.

4、 Applicable scenarios

Industrial automation hydraulic control

Precision machine tool hydraulic system

Testing and simulation platform

Aviation hydraulic control system

High dynamic load control system
