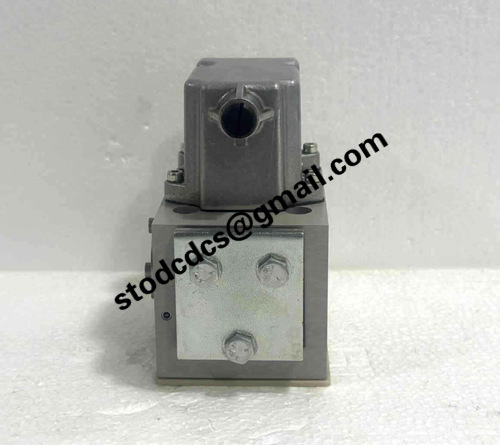

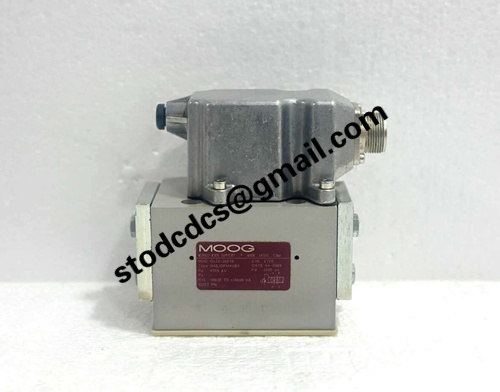

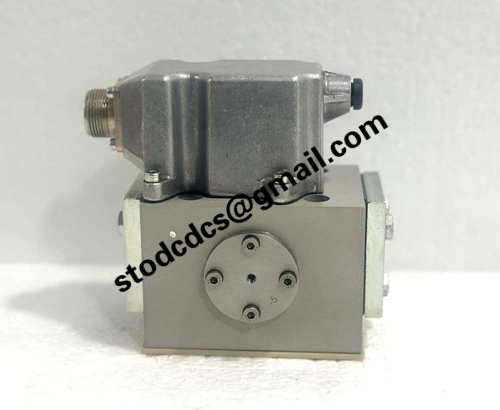

MOOG G631-3004B servo valve

Brand: Extreme Networks
Model:G631-3004B
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

MOOG G631-3004B servo valve

Product manual:

MOOG G631-3004B servo valve description
1、 Overall Overview

MOOG G631-3004B is a high-performance proportional servo valve belonging to the MOOG G631 series.
This series of servo valves is mainly used in high-precision hydraulic control systems, such as aviation, industrial automation, machine tools, and testing platforms.
G631-3004B can accurately convert electrical signals into hydraulic flow output, achieving precise control of actuator position, speed, or force.

2、 Main characteristics

Control type: Proportional servo valve, used for precise control of hydraulic actuators

Control method: electro-hydraulic control, regulating flow rate through DC electrical signals

Valve port type: four port three position or three port two position structure, supporting bidirectional hydraulic control

Response speed: High dynamic response, suitable for fast control of environments

Linear characteristics: The output flow rate is highly linear with the input signal, ensuring precise control

Repeatability: High precision in action repetition ensures actuator stability

Electrical interface: Standard ± 10V or ± 12V signal input, depending on the specific system

3、 Functional Features

high-precision control
G631-3004B can achieve precise flow and pressure control, suitable for high demand hydraulic systems.

quick response
Optimization of valve body structure to enable rapid response in high dynamic systems, reducing hysteresis and overshoot.

durable and reliable
The valve body and internal components are made of high-precision machining and wear-resistant materials, suitable for long-term industrial environment use.

Strong compatibility
Can be integrated into various hydraulic servo systems, including robotic arms, flight control, testing platforms, etc.

Easy to debug
Support regulating the working characteristics of valves through electrical signals, facilitating system debugging and performance optimization.

4、 Applicable scenarios

Aviation Flight Control System

Industrial automation hydraulic control

Precision machine tool servo hydraulic system

Testing and simulation platform

High dynamic load control system
