Moog SM2337D Integrated Servo Motor

Product manual:

Moog SM2337D is an integrated servo motor that combines high-performance motors, servo drives, and control functions into a compact solution for high-precision motion control systems. It is widely used in the automation, packaging, robotics, printing, and electronics manufacturing industries.

1、 Basic Product Information
Project Content
Product Model SM2337D
Manufacturer Moog Animatics (now a subsidiary brand of Moog Corporation)
Series SmartMotor ™ SM2300 series
Type: Integrated Servo Motor
Built in closed-loop servo control system for control mode

2、 Core Features
highly integration

Integrate the motor, driver, encoder, motion controller, and communication interface all into one housing;

Complex control tasks can be completed directly without the need for external servo drivers and PLCs.

intelligent control

Support built-in motion control programs (using Moog's SMI programming language);

Supporting multi axis coordinated motion, suitable for building intelligent automation systems.

Communication protocol support

Support RS-232/RS-485 communication;

Compatible with CANopen, Modbus, EtherNet/IP (depending on the specific model);

Multi axis synchronous control can be achieved through the network.

closed loop feedback system

Built in high-resolution photoelectric encoder;

Accurate speed, position, and torque control capabilities.

Motor characteristics

High torque output;

Small size packaging;

High efficiency and low heat generation.

3、 Overview of Technical Parameters (Typical SM2337D)
Parameter values
Power input 24~75 VDC
Continuous current 3.0 A (rated)
Peak current 6.0 A
Rated torque 0.6 Nm (approximately)
Peak torque of 1.8 Nm (approximately)
Encoder type: Built in 1000 CPR photoelectric encoder
Communication interface RS-232/RS-485 (standard), CANopen (optional)
Control function supports point position, speed, torque, and synchronous control
Installation flange size NEMA 23 (57 mm)
The protection level is usually IP20 (varying depending on the packaging level)

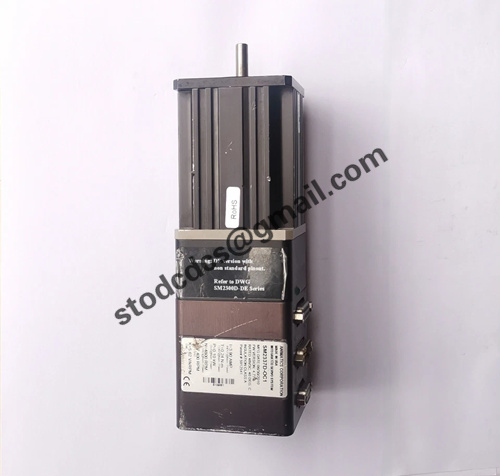

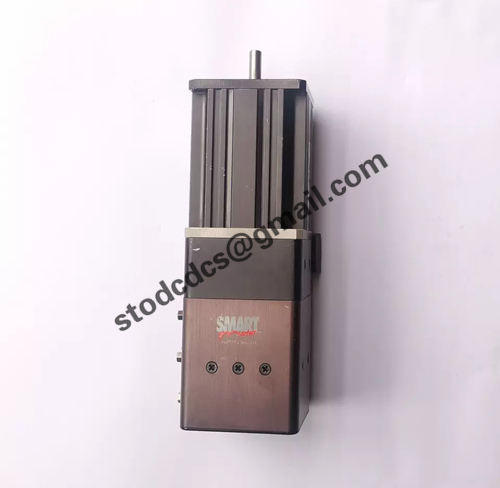

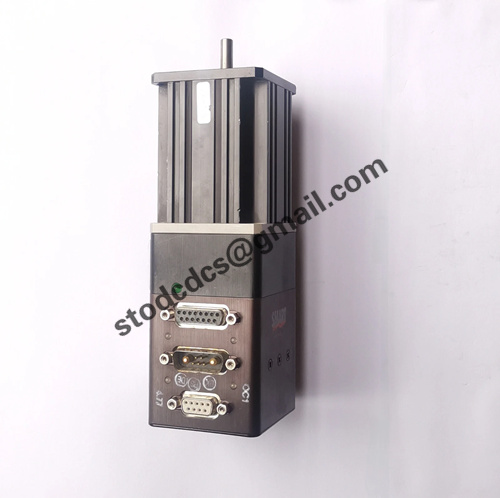

Product details picture:
