Motorola MVME162-222 Controller Module

Product manual:

Product Overview

The Motorola MVME162-222 is a model of the MVME162 series VME bus single board computer (SBC),
Designed for embedded control and automation systems based on Motorola 68k architecture processor.
This module integrates a processor, memory, communication interface, and timing/interrupt logic, and can serve as the control core of a VME system,
Widely used in industrial control, telecommunications, transportation, and national defense fields.

Technical parameters (refer to MVME162 series, 222 model configuration)

Processor: Motorola MC68040 or MC68LC040, with a clock frequency of approximately 25MHz.

Memory:

DRAM: 8MB~32MB (expandable)

Flash/EPROM: Used for firmware, bootloader, and operating system storage

Bus interface:

VMEbus standard interface (A16/A24/A32 address mode, D08/D16/D32 data transmission)

Support running as a system controller

I/O interface:

Serial port (RS-232/RS-422, configurable)

Parallel port (used for printers or other parallel peripherals)

Ethernet interface (optional for some configuration models)

Timer and watchdog circuit

Power supply: Powered by VME backplane (+5V/± 12V).

Operating system support: real-time operating systems such as VxWorks, pSOS, Lynx, etc.

Application scenarios

Industrial automation: as the core controller for PLC, CNC machine tools, and robot systems.

Telecommunications and network equipment: used for early switches, signal processing, and node control.

Traffic control: used as a logic and signal processing core in railway, subway, and aviation ground systems.

Military and Aerospace: Embedded computing units applied to command and control and weapon platforms.

Testing and Measurement System: Used in the instrumentation of the VME framework to perform data acquisition and processing.

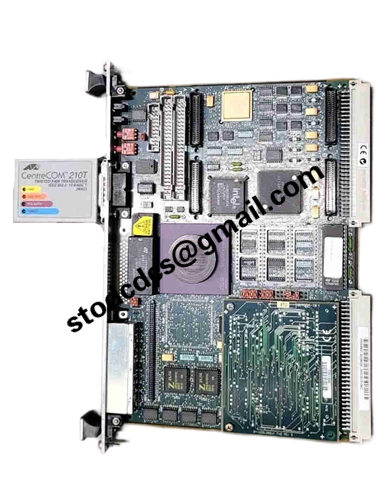

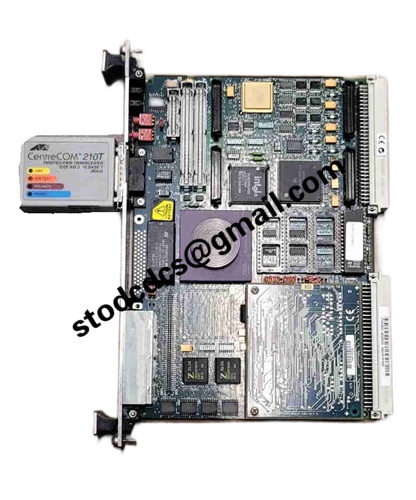

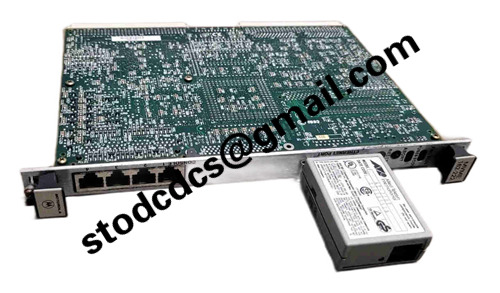

Motorola MVME162-222 Product details picture:
