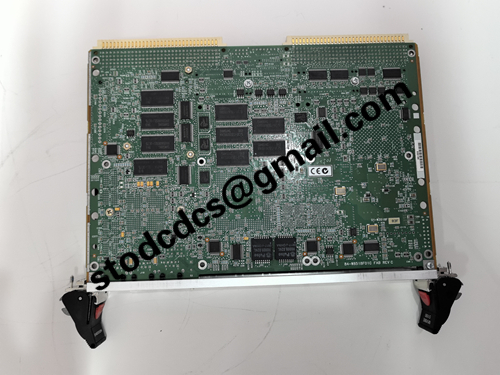

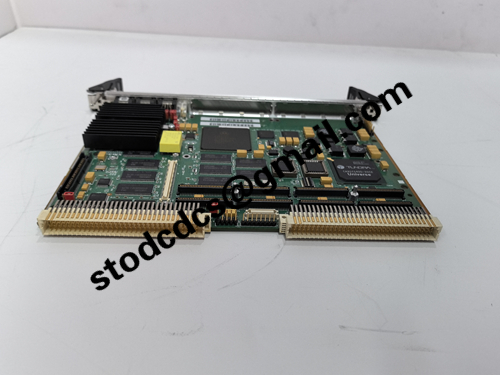

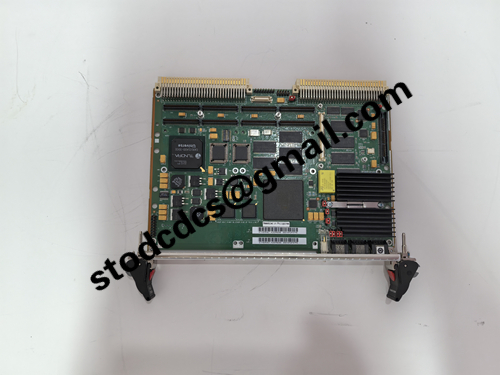

Motorola MVME5100 Multi functional I/O Module

Brand:Motorola
Model:MVME5100
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Motorola MVME5100 Multi functional I/O Module

Product manual:

1、 Product Overview
Motorola MVME5100 is a high-performance multifunctional I/O module based on the VMEbus architecture,
The VME embedded system product line belongs to Motorola (later Emerson/Artesyn/Abaco Systems).
This module provides powerful processing capabilities and rich input/output support for fields such as industrial control, communication, aerospace, and defense.

2、 Core processing capability
Project parameter description
CPU PowerPC 750 or PowerPC 7400 series (operating frequency 400~500 MHz)
SDRAM memory supports a maximum of 512MB (on-board ECC)
Flash ROM supports a maximum of 64MB
L2 Cache 1MB high-speed L2 cache
The chipset supports MVME5100 with built-in PCI to VME bridge chip (Tundra Universe II)

3、 Input/Output (I/O) interface support
Interface Type Description
Two asynchronous serial ports (RS-232)
Ethernet 10/100 Mbps Ethernet port (RJ45)
USB interfaces generally do not include native USB and require expansion
Parallel port for one parallel printer (optional)
Real time clock RTC with battery backup
The control bus provides multiple VMEbus controls and master/slave access logic
Scalable I/O supports PMC slot expansion (up to 2 PCI Mezzanine Cards)
