Motorola VME-340B processor PCB card

Product manual:

Motorola VME-340B processor PCB card
Product Overview

Motorola VME-340B is a processor PCB card based on the VMEbus architecture, used for industrial embedded systems and VME bus computing platforms. This module integrates CPU, memory, bus interface, and control logic, and can serve as the core computing unit of the system, achieving high-speed data processing, real-time control, and data interaction with other VME expansion modules. The VME-340B PCB card is commonly used in industrial automation, testing and measurement, communication, and scientific research systems.

Technical Specifications

Processor: Motorola MC68EC030/MC68030 series CPU

Memory:

RAM: 2 MB -8 MB expandable

ROM/Flash: Used for firmware and boot programs

NVRAM: with real-time clock function

Bus interface: VMEbus standard, supports 16/32-bit data transmission

I/O interface:

Multi channel serial interface (RS-232/RS-422)

Parallel Interface

Timer and watchdog function

Control function:

Bus arbitration and DMA data transfer

Interrupt management and status monitoring

System compatibility: Supports embedded real-time operating systems such as VxWorks and pSOS

Work environment: Industrial grade design, suitable for wide temperature and high interference environments

Application scenarios

industrial automation control

Control the data collection and execution of production lines and industrial equipment.

Machine Tool and Motion Control System

Support multi axis synchronous control, pulse output, and servo drive management.

Testing and Measurement System

Data collection, experimental equipment control, and signal processing.

Embedded Control and Communication System

Embedded network nodes and protocol processing.

Energy and Power Systems

Real time monitoring and control of power generation, transformation, and distribution systems.

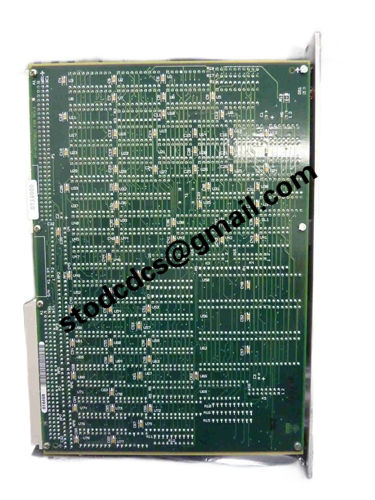

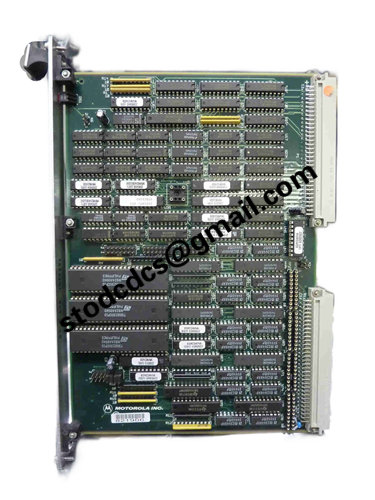

Motorola VME-340B Product details picture:

VME-340B
