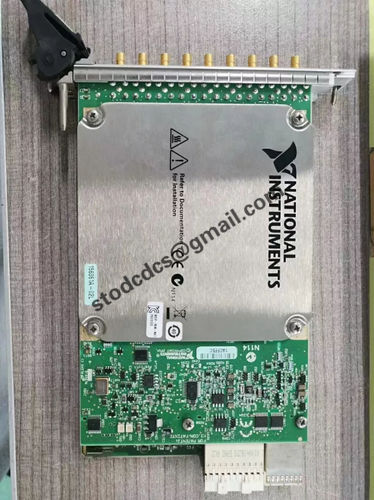

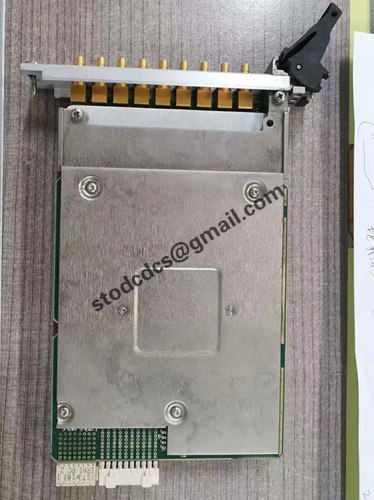

NI PXIE-5105 oscilloscope module

Brand:NI
Model:PXIE-5105
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

NI PXIE-5105 oscilloscope module

Product manual:

NI PXIe-5105 is a high-density PXI Express oscilloscope module launched by National Instruments (NI),
Widely used in fields such as automated testing, communication systems, and electronic device verification.

Core features:
Analog bandwidth: 60 MHz, suitable for most basic signal analysis applications.

Sampling rate: up to 60 MS/s (per channel), providing high sampling accuracy.

Number of channels: 8 channels for simultaneous sampling, suitable for multi-channel synchronous measurement tasks.

Input type: Supports reference single ended input and provides flexible signal acquisition methods.

Input impedance: 50 Ω± 2% and 1 M Ω± 1% (parallel connection of approximately 50 pF capacitor),
Different input impedances can be selected according to application requirements.

Input voltage range:

50 Ω input range: 0.05 V to 6 V peak to peak.

1 M Ω input range: 0.05 V to 30 V peak to peak.

ADC resolution: 12 bits, providing high-precision signal conversion.

Storage depth: 128 MB, suitable for long-term signal capture and storage.

Temperature range: The working temperature range is from 0 ° C to 55 ° C, suitable for various industrial environments.

Application areas:
Automated testing system: can be integrated into an automated testing platform,
Used for equipment performance verification, fault diagnosis, etc.

Communication system: used to evaluate the time-domain characteristics of communication equipment, such as signal quality, waveform analysis, etc.

Electronic product development: Assist engineers in analyzing signal characteristics, debugging circuits and systems during prototype design and development.

Education and Research: Suitable for signal measurement and analysis in teaching experiments, research projects, and technical research.
