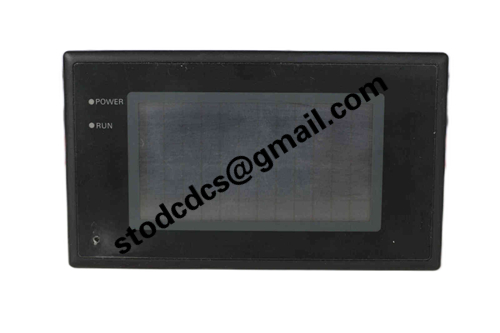

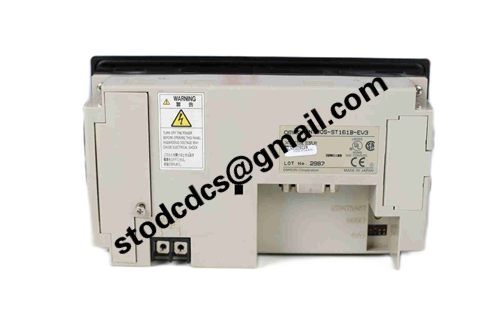

NT20S-ST161B-E touch screen

Model:NT20S‑ST161B‑E
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

NT20S-ST161B-E touch screen

Product manual:

Introduction to Omron NT20S-ST161B-E Touch Screen

NT20S-ST161B-E belongs to the Omron NT20S series of small industrial touch display terminals, designed specifically for the human-machine interface (HMI) of industrial control panels. Its characteristics are compact structure, high protection level, intuitive operation, and suitable for controlling and monitoring small and medium-sized equipment.

Main Features

Industrial grade protection
The front panel has a high level of protection, which can prevent dust, water, and splashes, making it suitable for industrial environments.

Display and Touch Control
5-inch STN-LCD display screen with a resolution of approximately 256 × 128 pixels, equipped with touch function, capable of operating buttons or touch areas on the screen.

communication interface
Supports Host Link or NT Link protocols, allowing for data exchange and control with PLCs or controllers.

Storage and operation
The built-in storage space is about 96 KB, which is used for programs and displaying data. It runs reliably and responds quickly.

Installation method
Panel embedded installation, suitable for the front end of control cabinets or equipment panels.

working environment
The working temperature is about 0-50 ° C, and the storage temperature is about -20-70 ° C. The front panel design can adapt to industrial use environments.

Power supply and power consumption
Powered by a 24V DC power supply, with a maximum power consumption of approximately 10 W.

Typical application scenarios

Small device operation interface and parameter setting

Production line monitoring and operation status display

Process display, alarm prompts, and data collection

Front end human-machine interface of industrial control cabinet
