PL810 3BDH000311R0101 power link module
Brand:ABB
Model:PL810 3BDH000311R0101
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
PL810 3BDH000311R0101 power link module
Product manual:
ABB PL810 (3BDH000311R0101) is a power link module used in ABB AC800M control system. Its main function is to provide stable power connection and distribution between I/O modules, and it is one of the essential components in module assembly.
1、 Basic Information
Product Model: PL810
Order number: 3BDH000311R0101
Module type: Power Link Module
System Platform: ABB AC800M Control System
Adaptation object: S800 I/O module series
Installation method: DIN rail installation
2、 Functional Features
Used to transfer power from one I/O module to adjacent modules
Realize stable 24V DC power connection between I/O groups
Reduce external wiring, improve installation efficiency and module compactness
The module itself has no electronic function and does not participate in data processing
Support redundant configuration to enhance system reliability
3、 Technical parameters
Working voltage: 24V DC (compatible with S800 I/O system)
Rated current: determined based on the total load demand of the system (usually a few amperes)
Environmental temperature range: -25 ℃ to+70 ℃
Installation position: located between two S800 modules, used for power "bridging"
Size: Small modular design, compatible with standard S800 size architecture
4、 Application Fields
Power Automation: Distribution and Power Plant DCS System
Chemical and Pharmaceutical: I/O Power Supply Links in Precision Control Systems
Water treatment engineering: module power distribution for pump stations and valve control units
Food and beverage, paper industry: modular power supply in process control systems
Metallurgy and Machinery Manufacturing: IO Expansion Unit Power Connection in Large Equipment Automation

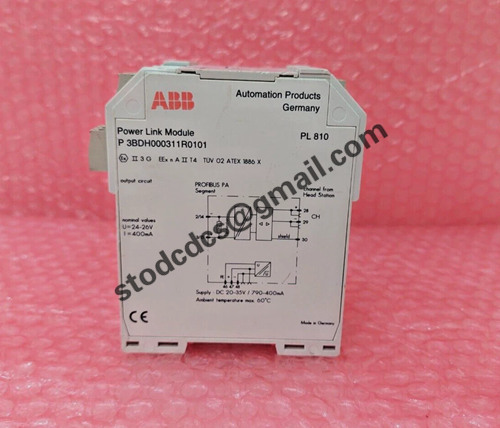

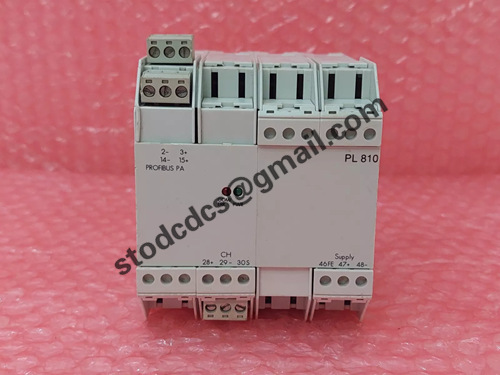

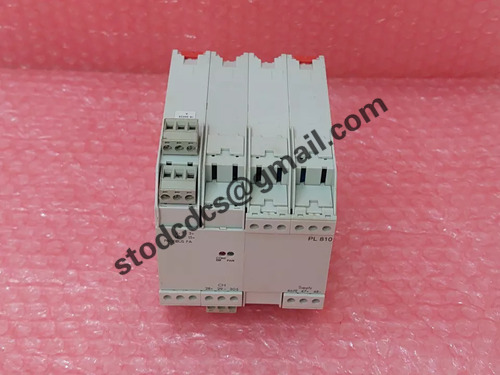

Product details picture:
